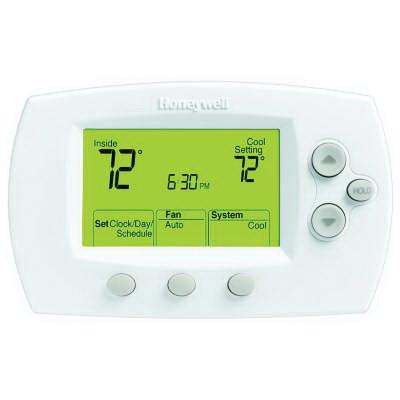

Thermostat Prog 5-1-1 1H/1C W/Lg Display
- Item ID: TH6110D1021
- Min. Order Qty: 1
- Item ID: TH6110D1021
- Brand: Honeywell
-
-
Thermostat Prog 5-1-1 1H/1C W/Lg Display
| Amperage Rating | : | 0.02 to 1 A |
| Changeover | : | Auto, Manual |
| Color | : | Premier White |
| Cool Current | : | 0.02 to 1 A Running |
| Differential Temperature | : | +/-1 deg F |
| Dimensions | : | 3-9/16 in H x 5-13/16 in W x 1-1/2 in D |
| Display Type | : | 5.09 sq-in Large |
| Fan Current | : | 0.02 to 0.5 A Running |
| Frequency Rating | : | 50/60 Hz |
| Heat Current | : | 0.02 to 1 A Running |
| Humidity Rating | : | 5 to 90% RH Non-Condensing |
| Mounting Type | : | Horizontal |
| Power Rating | : | 0.4 to 30 W |
| Power Source | : | Battery, Hardwired |
| Programmability | : | 5-1-1, 5-2 day Program |
| Sensing Element | : | Thermistor |
| Series | : | FocusPRO 6000 Series |
| Stages | : | Up to 1 Heat/1 Cool |
| Switch Position | : | HEAT-OFF-COOL-AUTO (System), AUTO-ON (Fan) |
| Temperature Settings | : | 40 to 90 deg F Heating, 50 to 99 deg F Cooling |
| Terminal Designation | : | RC, R, W (O/B), Y, G, C |
| Voltage Rating | : | 20 to 30 VAC, 750 mV |
