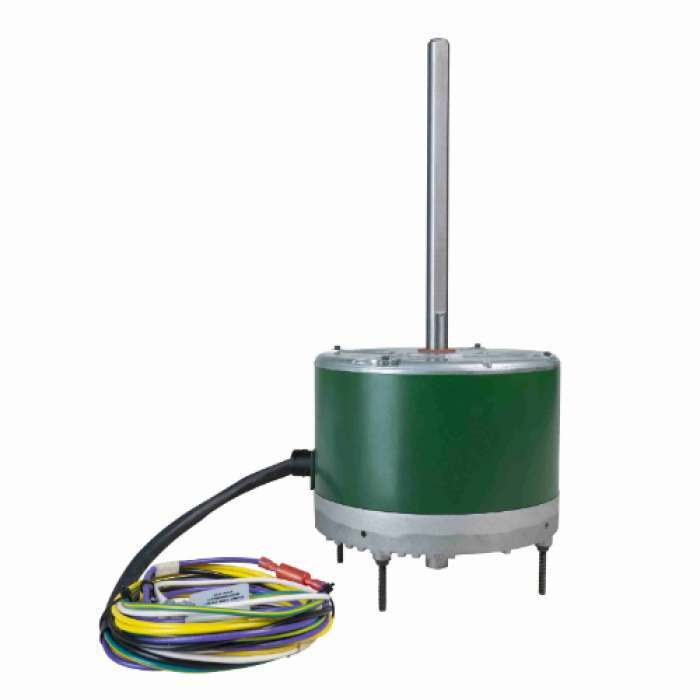

Genteq® Evergreen® 6303S OM Condenser Fan Motor, 1/3 HP, 208-230 V, 60 Hz, 1 Ph, 48 Frame, 825/1075 RPM, 2 Speed
- Item ID: 6303S
- Min. Order Qty: 1
- Item ID: 6303S
- Brand: Genteq®
-
-
- Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors)
- Electronically Commutated (ECM), Electronically Protected
- 1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM
- 208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over
- Class B Insulation, -20 to 60°C Ambient
- Rotation: Reversible (Factory Set To CCW Lead End)
- Permanently Lubricated Ball Bearing
- Shaft: 1/2” Diameter, 6.5” Length, 6” Single Flat
- Leads: 54” Length With 1/4” Fast On Terminals, Ground Wire #10 Eyelet
- Mounting: Horizontal or Vertical Shaft-down, Belly Band (Not Supplied With Motor), Extended Clamp Bolts, or OEM Mounting Holes
| Bearing Type | : | Ball |
| HP Rating | : | 1/3 HP |
| Mounting Type | : | Belly Band |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Series | : | Evergreen® OM |
| Shaft Size | : | 1/2” Diameter, 6.5” Length, 6” Single Flat |
| Speed Rating | : | 1000-1100 RPM |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230 V |
