• Super rugged construction
• Data logging
• Temperature compensated system tightness test
• Sends and receives wireless readings
• Protected thermocouple jacks for pipe and outdoor temps
• R32 ready
• Water resistant (IP54)
• A2L Compatible

Includes:

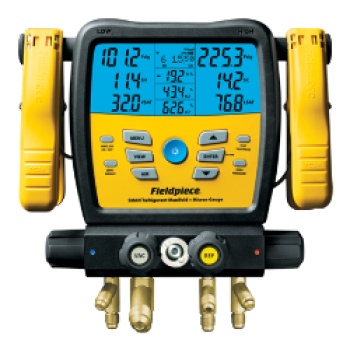

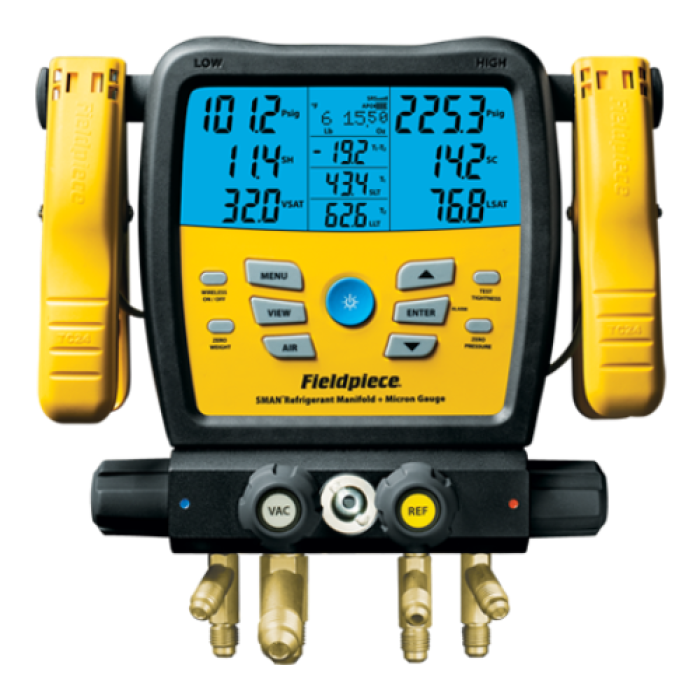

• SM480V 4-port Manifold
• (2) TC24 Wired Type-K Pipe Clamp Thermocouple
• (1) ATA1 Type-K Bead Thermocouple with Clip
• (1) ANC11 Padded Drawstring Case

Specifications

• Display: LCD (5 inches diagonal)
• Backlight: Blue (adjustable duration)
• Low Battery Indication: is displayed when the battery voltage drops below the operating level.
• Auto Power Off: 30 minutes of inactivity (adjustable)
• Maximum Manifold Pressure: 800 Psig (5500 kPa)
• Battery Type: 6 x AA alkaline
• Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
• Radio Frequency: 2.4 GHz
• Wireless Range: 1000 feet (305 meters) line of sight – distance decreases through obstructions
• Data Port: Micro USB (for extracting data logs or updating firmware)
• Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
• Storage Environment: -4°F to 140°F (-20°C to 60°C) at <80% RH (with battery removed)
• Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to 18°C, 28°C to 50°C), per 1.8°F (32°F to 64°F, 82°F to 122°F)
• Weight: 4.03 lbs (1.83 kg)
• Water Resistant: Designed to IP54
