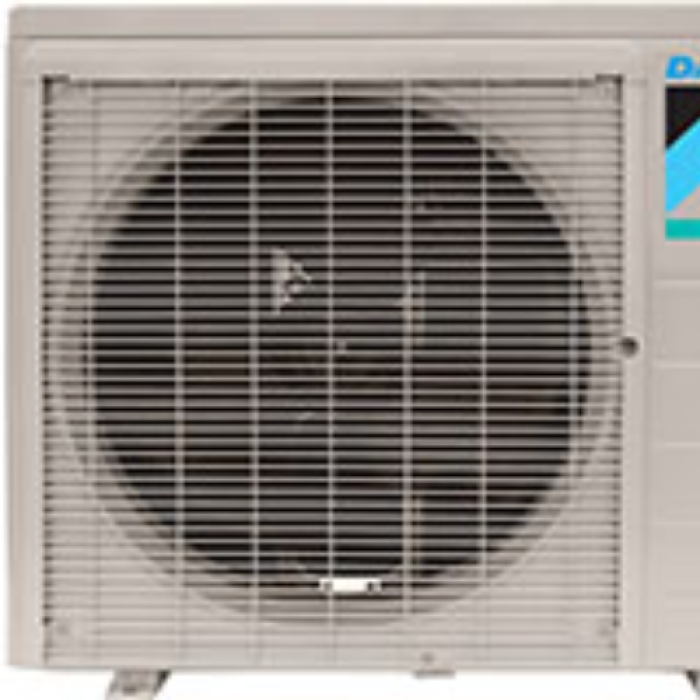

DAIKIN RXC Series RXC18 RXC18AXVJU Split-System Outdoor Heat Pump, 208-230 V, 16.34 A, 18100 Btu/hr Cooling, 1 ph Phase
- Item ID: RXC18AXVJU
- Min. Order Qty: 1
- Item ID: RXC18AXVJU
- Brand: DAIKIN
-
-
DAIKIN Split-System Outdoor Heat Pump, RXC Series, Model: RXC18, 208-230 V, 16.34 A, 5.3 kW, 5.28 kW Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 18000 Btu/hr, Cooling BTU Rating: 18100 Btu/hr, Heating CFM Rating: 1833 cfm, Cooling CFM Rating: 1879 cfm, 10.5 EER, 18 SEER, 9 HSPF, Hermetic Swing Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 20 A Fuse, Heating Sound Level: 53 dBA, Cooling Sound Level: 53 dBA, Ivory White, Heating Operating Temperature: 70 deg F, 47 deg F, Cooling Operating Temperature: 80 deg F, 95 deg F, 36-5/8 in Overall Width, 27-13/32 in Overall Height, Additional Information: Air Cooled, Single-Zone, 13-13/16 in D
| AC/HP Type | : | Air-Cooled Split Outdoor Unit |
| Additional Information | : | Air Cooled, Single-Zone, 13-13/16 in D |
| Amperage Rating | : | 16.34 A |
| Color | : | Ivory White |
| Compressor Type | : | Hermetic Swing |
| Cooling BTU Rating | : | 18100 Btu/hr |
| Cooling CFM Rating | : | 1879 cfm |
| Cooling Operating Temperature | : | 80 deg F, 95 deg F |
| Cooling Sound Level | : | 53 dBA |
| Depth | : | 13-13/16 |
| EER Rating | : | 10.5 |
| Efficiency | : | SEER2 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| HSPF Rating | : | 9 |
| Heating BTU Rating | : | 18000 Btu/hr |
| Heating CFM Rating | : | 1833 cfm |
| Heating Operating Temperature | : | 70 deg F, 47 deg F |
| Heating Sound Level | : | 53 dBA |
| Height | : | 27-13/32 |
| Liquid Line Size | : | 1/4 in |
| Model | : | RXC18 |
| Number of Stages | : | SINGLE STAGE |
| Overall Height | : | 27-13/32 in |
| Overall Width | : | 36-5/8 in |
| Phase | : | 1 ph |
| Power Rating | : | 5.3 kW, 5.28 kW |
| Refrigerant Type | : | R-32 |
| SEER Rating | : | 18 |
| Series | : | RXC Series |
| Suction Line Size | : | 1/2 in |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208-230 V |
| Width | : | 36-5/8 |
DAIKIN RXC18AXVJU
