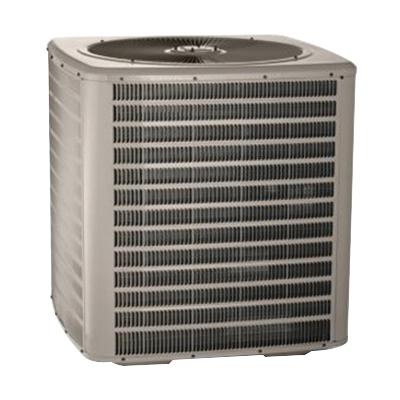

Goodman® VSZ140601 VSZ140601 | Standard Supply

Goodman® VSZ14 VSZ140601 Split-System Heat Pump, 208-230 V, 34.5 A, 60000 Btu/hr Cooling/Heating BTU, 1/4 hp, Steel

Goodman® VSZ140601 VSZ140601
  • Item ID: VSZ140601
  • Min. Order Qty: 1
  • Item ID: VSZ140601
  • Brand: Goodman®
  • loading

Goodman® Split-System Heat Pump, Model: VSZ14, 208-230 V, 34.5 A, 1/4 hp, 60 Hz, 1 ph Phase, 60000 Btu/hr Cooling/Heating, 12 EER Rating, 14 SEER, 9 HSPF, Sweat Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 60 A Fuse Rating, Tonnage: 5 ton, 76 dBA Sound Level, 1 Stages, Steel, Finish: Powder Painted, Bahama Beige, 34-1/2 in H x 35-1/2 in W x 35-1/2 in D

  • High efficiency scroll compressor
  • Time delay technology to ensure quiet reliable defrost
  • One-speed ECM condenser fan motor
  • Factory installed bi-flow liquid line filter drier, suction line accumulator, compressor crankcase heater, high capacity muffler
  • High and low pressure switches
  • Service valves with sweat connections and easy-access to gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Fully charged for 15 ft of tubing length
  • Grille-style sound control top design cabinet
  • Attractive bahama beige powder-paint finish
  • 500 hr salt spray tested
  • Wire fan discharge grille
  • Steel louver coil guard protects coil from damage and adds strength to the unit
  • Rust-resistant screws
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field installed accessories
  • 26.4 A rated load, 134 A locked rotor compressor, 1.5 A full load condenser fan motor
  • 1/2 in or 3/4 in electrical conduit
Amperage Rating      :      34.5 A
BTU Rating      :      60000 Btu/hr Cooling/Heating
Color      :      Bahama Beige
Compressor Type      :      Scroll
Connection Type      :      Sweat
Dimensions      :      34-1/2 in H x 35-1/2 in W x 35-1/2 in D
EER Rating      :      12
Finish      :      Powder Painted
Frequency Rating      :      60 Hz
Fuse Rating      :      60 A
HP Rating      :      1/4 hp
HSPF Rating      :      9
Liquid Line Size      :      3/8 in
Material      :      Steel
Model      :      VSZ14
Number of Stages      :      1
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      14
Sound Level      :      76 dBA
Suction Line Size      :      7/8 in
Tonnage      :      5 ton
Voltage Rating      :      208-230 V

Goodman® VSZ140601
