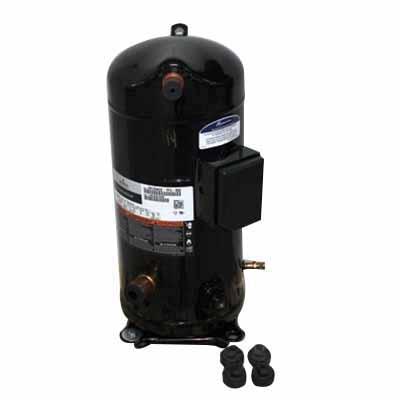

Copeland™ ZR125KCE-TF5-965 Scroll Compressor, 200 to 230 VAC, 10850 W, 10 hp, R-22, R-407C, R-134A, HFC Refrigerant
- Item ID: ZR125KCE-TF5-965
- Min. Order Qty: 1
- Item ID: ZR125KCE-TF5-965
- Brand: Copeland™
-
-
Copeland™ Scroll Compressor, Series: ZR, 125000 Btu/hr BTU, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1820 - 1870 lb/hr, 20.655 cu-ft/min, 200 - 230 VAC, 32.6 A, 10850 W, 10 hp, R-22, R-407C, R-134A, HFC Refrigerant, 3500 rev/min Speed, 80 - 85 dBA, 11.6 - 19.6 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 95 deg F Liquid, 10.38 in L x 11.23 in W x 21 in H
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Model variation
- 110 oz initial oil charge, 106 oz oil recharge
- 809 cu-in internal free volume
- 7-1/2 in L x 7-1/2 in W x 21-3/4 in H mounting
- 10.2 cu-in/rev displacement, 1239.34 cu-ft/hr displacement
- 41.4 A-rated load, 239 A locked rotor, 58 A minimum circuit, 39.1 A maximum operating
- Bill of material-rotalock, screw on terminal block and mounting kit
| Amperage Rating | : | 32.6 A |
| BTU Rating | : | 125000 Btu/hr |
| CFM Rating | : | 20.655 cfm |
| Compressor Oil | : | POE-AK/DA, 3MA/SP32 |
| Dimensions | : | 10.38 in L x 11.23 in W x 21 in H |
| Discharge Line Size | : | 7/8 in Stub |
| EER Rating | : | 11.6 to 19.6 |
| Flow Rate | : | 1820 to 1870 lb/hr |
| Power Rating | : | 10850 W, 10 hp |
| Refrigerant Type | : | R-22, R-407C, R-134A, HFC |
| Series | : | ZR |
| Sound Level | : | 80 to 85 dBA |
| Speed Rating | : | 3500 rpm |
| Suction Line Size | : | 1-3/8 in Stub |
| Temperature Rating | : | 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 95 deg F Liquid |
| Voltage Rating | : | 200 to 230 VAC |
