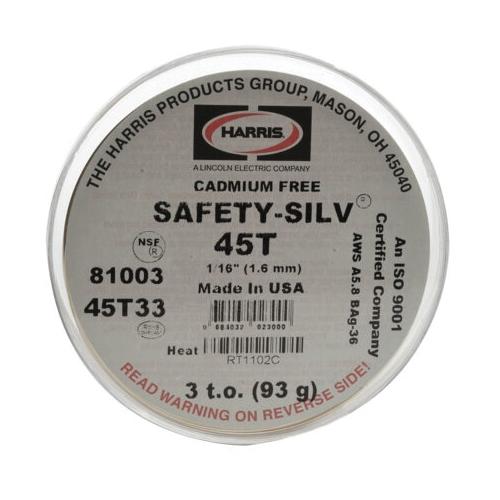

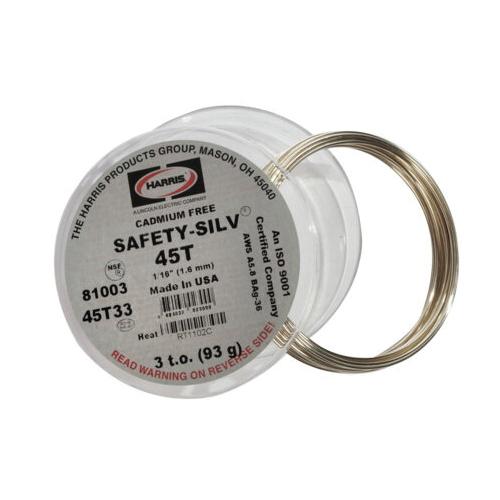

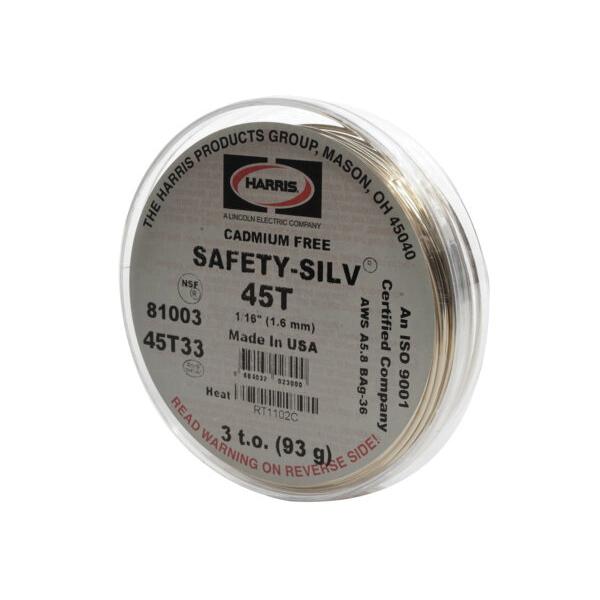

Harris® Safety-Silv® 45T33 Brazing Alloy, 1/16 in Dia, Brass/Bronze/Copper/Steel For Joining

  • Item ID: 45T33
  • Min. Order Qty: 1
  • Item ID: 45T33
  • Brand: Harris®
  • loading

Safety-Silv® 45T performs like a 45% silver, cadmium-bearing alloy, but is cadmium-free. It has a lower melting temperature than Safety-Silv® 45. This alloy has excellent fillet-forming qualities. Safety-Silv® 45T produces high-strength, ductile joints. It is NSF 51 certified for use with foodservice equipment.

Harris® Brazing Alloy, Series: 45T Series, 3 ozt, Cup, 1/16 in Dia, 1251 to 1495 deg F, Composition: 44 to 46% Silver, 26 to 28% Copper, 23 to 27% Zinc, 2.5 to 3.5% Tin, 0.15% Other, Brass/Bronze/Copper/Steel For Joining Material

  • Cadmium-free silver brazing alloy
  • Performs like a 45% silver cadmium-bearing alloy
  • Lower melting temperature than Safety-Silv® 45
  • Good flow properties
  • Produces high-strength, ductile joints
  • Popular choice to braze copper, brass and steel
  • Meets NSF/ANSI Standard 51 for food equipment materials
  • Complies with the EU Reach & RoHS directive
Composition      :      44 to 46% Silver, 26 to 28% Copper, 23 to 27% Zinc, 2.5 to 3.5% Tin, 0.15% Other
Container Size      :      3 ozt
Container Type      :      Cup
Diameter      :      1/16 in
For Joining Material      :      Brass/Bronze/Copper/Steel
Series      :      45T Series
Temperature Rating      :      1251 to 1495 deg F
  • SDS https://assets.unilogcorp.com/267/ITEM/DOC/Harris_45T33_SDS.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Harris_45T33_Specification_Sheet.pdf
  • SDS https://assets.unilogcorp.com/267/ITEM/DOC/Harris_45T33_SDS.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Harris_45T33_Specification_Sheet.pdf
