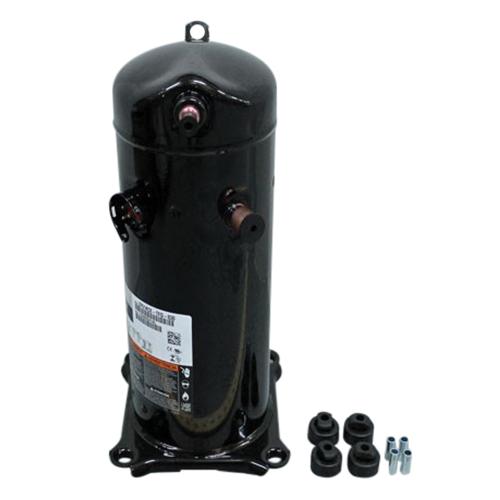

Copeland™ ZP61K5E-TF5-800 Scroll Compressor, 5 ton, 200 - 230 VAC, 5 hp, R-410A Refrigerant
- Item ID: ZP61K5E-TF5-800
- Min. Order Qty: 1
- Item ID: ZP61K5E-TF5-800
- Brand: Copeland™
-
-
Copeland™ Scroll Compressor, Series: ZP, 61000 Btu/hr BTU, 5 ton, 7/8 in ODF Suction Line, 1/2 in ODF Discharge Line, 200 - 230 VAC, 5 hp, R-410A Refrigerant, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 17 in H x 6-1/2 in Dia
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Model variation
- 21.9 A-rated load, 136 A locked rotor, 30.6 A minimum circuit
- Bill of material-42 in molded plug wiring harness, mounting parts and installation instructions
| BTU Rating | : | 61000 Btu/hr |
| Compressor Oil | : | POE-AK/DA, 3MA/SP32 |
| Dimensions | : | 17 in H x 6-1/2 in Dia |
| Discharge Line Size | : | 1/2 in ODF |
| Power Rating | : | 5 hp |
| Refrigerant Type | : | R-410A |
| Series | : | ZP |
| Suction Line Size | : | 7/8 in ODF |
| Temperature Rating | : | 45 deg F Evaporator, 130 deg F Condensing |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 200 - 230 VAC |
Copeland™ ZP61K5E-TF5-800
