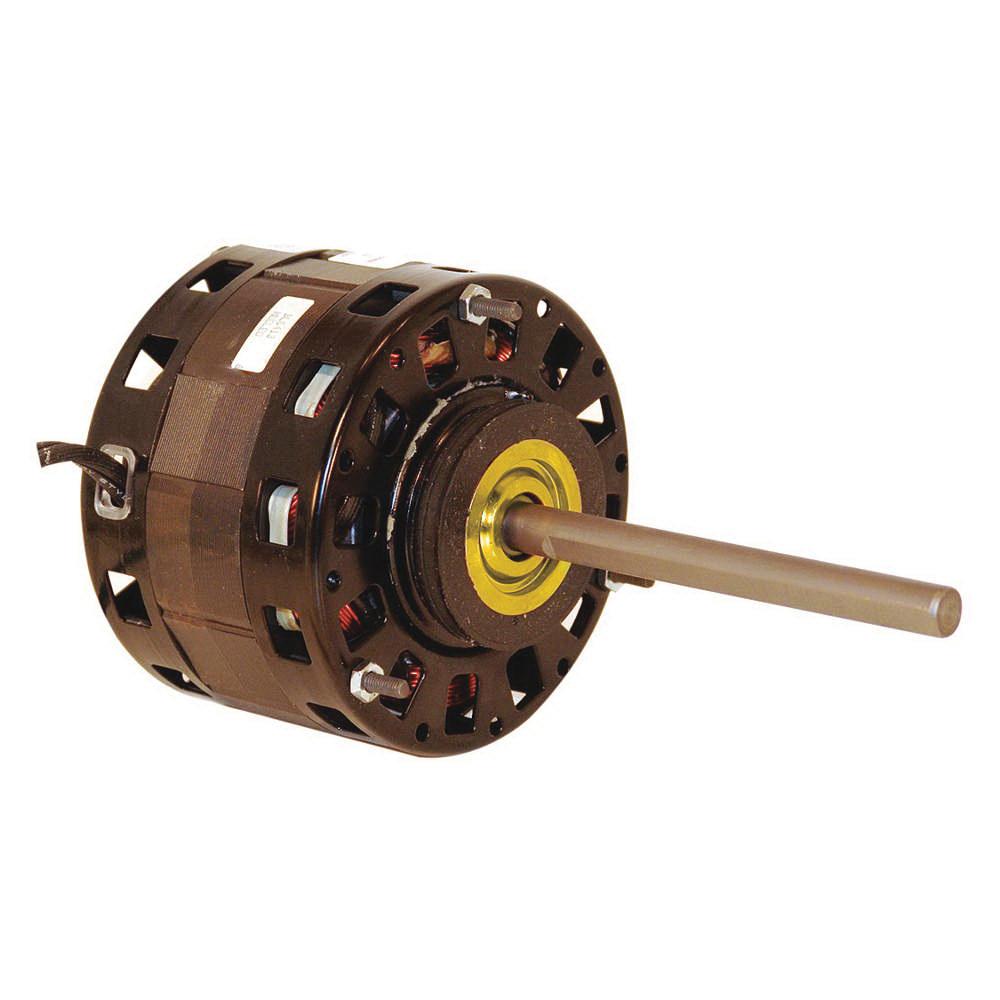

Century® BL6519 Fan and Blower Motor, 115 VAC, 4.7 A, 1/6 hp, 1/5 hp, 1/4 hp, 1075 rpm Speed, 1 ph, 60 Hz
- Item ID: BL6519
- Min. Order Qty: 1
- Item ID: BL6519
- Brand: Century®
-
-
Century® Fan and Blower Motor, 115 VAC, 4.7 A, 1/6 hp, 1/5 hp, 1/4 hp, 1075 rpm, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 42Y Frame, 0.5 in Dia x 4.66 in L Shaft, Reversible Rotation, 3 Speed, 65 % Efficiency, Sleeve Bearing, Band, Ring, Stud Mounting, Continuous, B Insulation Class, 1 Service Factor, 40 deg C, 5 in Dia x 9.29 in L
- Automatic thermal protection
- Three thru-bolts on a 4.42 in Dia bolt circle
| Amperage Rating | : | 4.7 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5 in Dia x 9.29 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 65 % |
| Frame Size | : | 42Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp, 1/5 hp, 1/4 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Open Air Over |
| Mounting Type | : | Band, Ring, Stud |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 0.5 in Dia x 4.66 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 VAC |
Century® BL6519
