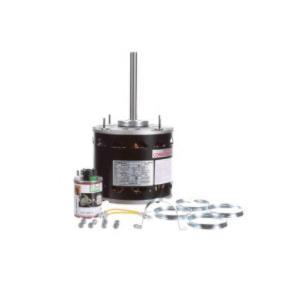

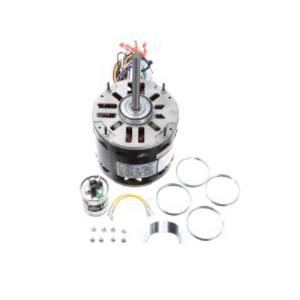

Century® 7FD6001A Direct Drive Blower Motor, 277 V, 1 to 3.6 A, 1/5 to 3/4 hp, 1075 rpm Speed, 0.56 kW, 1 ph -Phase
- Item ID: 7FD6001A
- Min. Order Qty: 1
- Item ID: 7FD6001A
- Brand: Century®
-
-
Century® Direct Drive Blower Motor, 277 V, 1 to 3.6 A, 1/5 to 3/4 hp, 1075 rpm, 0.56 kW, 1 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 5 Speed, Flat Shaft Type, Ball Bearing, Resilient Ring, Extended Stud Mounting, Continuous Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 36 in L x 4.86 in
- Energy-efficient
- Automatic thermal protection
- Capacitor 10 uF at 370 VAC
| Amperage Rating | : | 1 to 3.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 36 in L x 4.86 in |
| Duty Type | : | Continuous Air Over |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 to 3/4 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Resilient Ring, Extended Stud |
| Number of Poles | : | 6 |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Shaft Type | : | Flat |
| Speed Rating | : | 1075 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 277 V |
