Witt WL6A073ADAAL WL6A073ADAAL | Standard Supply

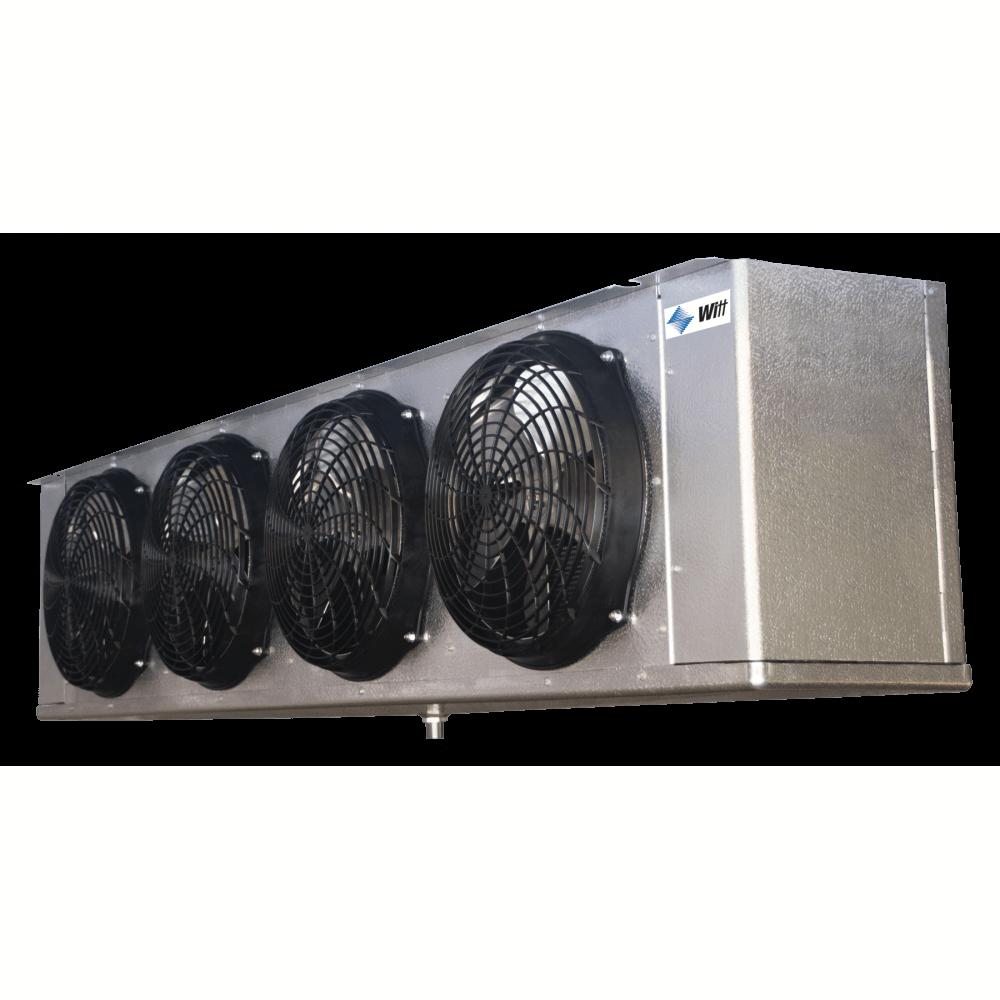

Witt Next-Gen All-Temp Series WL6A073ADAAL Low Profile Unit Cooler, 7300 Btu/hr BTU, 1600 cfm, 115 V, 60 Hz, 1 ph

  • Item ID: WL6A073ADAAL
  • Min. Order Qty: 1
  • Item ID: WL6A073ADAAL
  • Brand: Witt
  • loading

Witt low profile unit coolers feature an air draw through design and are available in air, electric and hot gas defrost configurations. We've taken these all-purpose unit coolers to the next level with the release of the Next-Gen All-Temp models. The units feature a new fan guard design and deep draw venturi to achieve optimal airflow, easy access for serviceability and can be used with multiple refrigerants. Next-Gen All-Temp unit coolers can be used in combination with the Next-Gen W-Series air cooled condensing units to provide a complete refrigeration solution for small to medium walk-ins. OEMs will like the versatility, efficiency and durability of these workhorse unit coolers.

Witt Low Profile Unit Cooler, Next-Gen All-Temp Series, 115 V, 60 Hz, 1 ph Phase, 7300 Btu/hr, 1600 cfm, NPT Drain Connection, 3/4-14 Connection, R-404A Refrigerant, 12 in Fan, Air Defrost, 2 Fans, Dual Speed Electronically Commutated Motor, 3/8 in Tube, 6 FPI Fins per Inch, Aluminum, 35 deg F, 18-1/8 in H x 43-5/8 in W x 15-1/2 in D

  • Dual speed EC motors
  • Single fan through six fan models
  • End panels slide out for easy serviceability from the front or ends of the unit
  • Mounts flush to the ceiling to maximize headroom and space
  • Embossed aluminum housing is lightweight and durable
  • Fan sections are baffled to prevent short cycling of air
  • UL/cUL certified for use with multiple refrigerants
  • NSF approved for use in food preparation areas
BTU Rating      :      7300 Btu/hr
CFM Rating      :      1600 cfm
Configuration      :      Air Defrost
Connection Size      :      3/4-14
Connection Type      :      NPT Drain
Dimensions      :      18-1/8 in H x 43-5/8 in W x 15-1/2 in D
Fan Size      :      12 in
Fins per Inch      :      6 FPI
Frequency Rating      :      60 Hz
Material      :      Aluminum
Motor Type      :      Dual Speed Electronically Commutated
Number of Fans      :      2
Phase      :      1 ph
Refrigerant Type      :      R-404A
Series      :      Next-Gen All-Temp Series
Temperature Rating      :      35 deg F
Tube Size      :      3/8 in
Voltage Rating      :      115 V
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Instruction_Installation_Manual.pdf
  • Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Warranty.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Instruction_Installation_Manual.pdf
  • Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Witt_WL6A073ADAAL_Warranty.pdf

Witt WL6A073ADAAL
