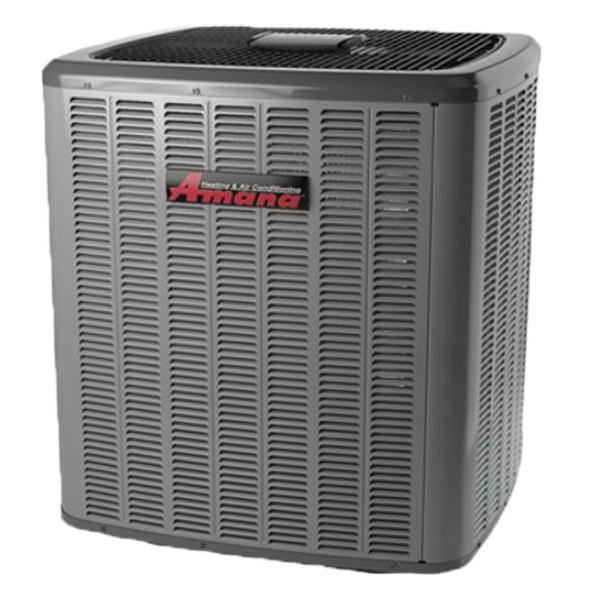

Amana® AVZC20 AVZC200481 Split-System Heat Pump, 208/230 V, 29.8 A, 46500 Btu/hr Cooling, 46000 Btu/hr Heating BTU
- Item ID: AVZC200481
- Min. Order Qty: 1
- Item ID: AVZC200481
- Brand: Amana®
-
-
Amana® Split-System Heat Pump, Model: AVZC20, 208/230 V, 29.8 A, 1/2 hp, 60 Hz, 1 ph Phase, 46500 Btu/hr Cooling, 46000 Btu/hr Heating, 20 SEER, 10 HSPF, Ball Valve Connection, Swing Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 1-1/8 in Suction Line, Tonnage: 4 ton, Steel, Finish: Galvanized, 41-1/4 in H x 35-1/2 in W x 35-1/2 in D
- Variable-speed swing compressors
- High density compressor sound blanket
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via indoor board Bluetooth® with the CoolCloud™ phone and tablet application
- AMANA® control algorithmic logic
- In communicating mode, only (2) low-voltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display and fault code storage
- Field selectable boost mode increases compressor speed during unusually high loads
- Quiet DC outdoor fan motor
- Fully charged for 15 ft of tubing length
- Field installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy-access to gauge ports
- Heavy gauge galvanized steel cabinet with grille-style sound control top design
- Custom two tone gray powder-paint finish
- 500 hr salt spray tested
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
| AC/HP Type | : | RESIDENTIAL |
| Amperage Rating | : | 29.8 A |
| BTU Rating | : | 46500 Btu/hr Cooling, 46000 Btu/hr Heating |
| Communicating AC/HP (Yes/No) | : | Yes |
| Compressor Type | : | Swing |
| Connection Type | : | Ball Valve |
| Dimensions | : | 41-1/4 in H x 35-1/2 in W x 35-1/2 in D |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| HSPF Rating | : | 10 |
| Item Name | : | AVZC |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Model | : | AVZC20 |
| Number of Phases | : | 1 PHASE |
| Number of Stages | : | TWO STAGE |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 20 |
| Series | : | INVERTER |
| Suction Line Size | : | 1-1/8 in |
| Tonnage | : | 4 ton |
| Voltage Rating | : | 208/230 V |
Amana® AVZC200481
