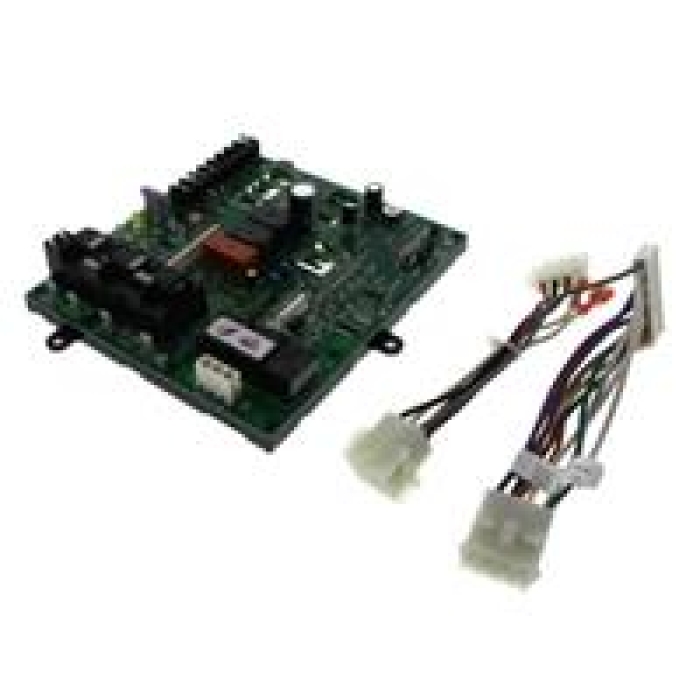

ICM™ ICM2807 Furnace Control Board, 98-132 VAC, 60 Hz

ICM™ ICM2807 ICM2807
  • Item ID: ICM2807
  • Min. Order Qty: 1
  • : HK42FZ05/10/15/17
  • Item ID: ICM2807
  • Brand: ICM™
  • loading

ICM™ Furnace Control Board, 98-132 VAC, 60 Hz, 5 to 95% at 55 deg F Humidity Rating, -40 to 176 deg F, 7 in L x 6-1/2 in W x 1-1/2 in H

  • Controls gas valve, Igniter, blower motor, Inducer, humidifier and air cleaner
  • Micro-processor based precision
  • Designed for 100% gas shut-off in case of ignition failure
  • Twinning compatible with another ICM2807 control
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with 24 VAC standard thermostat
  • Continuous blower speed jumper
  • Limit switch lockout time
  • Limit switch lockout after power interruption
  • Self diagnostics
Dimensions      :      7 in L x 6-1/2 in W x 1-1/2 in H
Frequency Rating      :      60 Hz
Humidity Rating      :      5 to 95% at 55 deg F
Temperature Rating      :      -40 to 176 deg F
Voltage Rating      :      98-132 VAC
