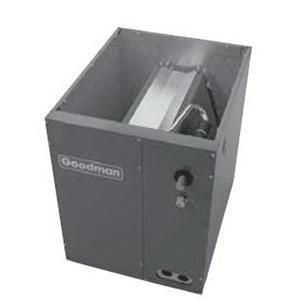

Goodman® CAPT Series CAPT4961D4 Cased Evaporator Coil, Cased Coil, 5 ton, 49000 to 61000 Btu/hr, Aluminum
- Item ID: CAPT4961D4
- Min. Order Qty: 1
- Item ID: CAPT4961D4
- Brand: Goodman®
-
-
Goodman® Cased Evaporator Coil, Series: CAPT Series, 49000 to 61000 Btu/hr, 13 SEER, 5 ton, R-410A, Cased Coil, 3/8 in, 7/8 in, Aluminum, Embossed/Galvanized/Painted, 30 in H x 24-1/2 in W x 21 in D
- CAPT model feature factory installed thermal expansion valves for cooling and heat pump applications
- 21 in D for easier attic access
- Split seam front for easy access
- Foil faced insulation covers the internal casing to reduce cabinet condensation
- Rust-resistant, thermoplastic drain pans featuring a low water retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
| BTU Rating | : | 49000 to 61000 Btu/hr |
| Cabinet Configuration | : | D |
| Coil Type | : | Cased |
| Configuration | : | UPFLOW/DOWNFLOW |
| Connection Size | : | 3/8 in, 7/8 in |
| Dimensions | : | 30 in H x 24-1/2 in W x 21 in D |
| Expansion Type | : | TXV |
| Finish | : | Embossed/Galvanized/Painted |
| Item Name | : | CAPT |
| Material | : | Aluminum |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13 |
| Series | : | CAPT Series |
| Tonnage | : | 5 ton |
| Type | : | A COIL |
Goodman® CAPT4961D4
