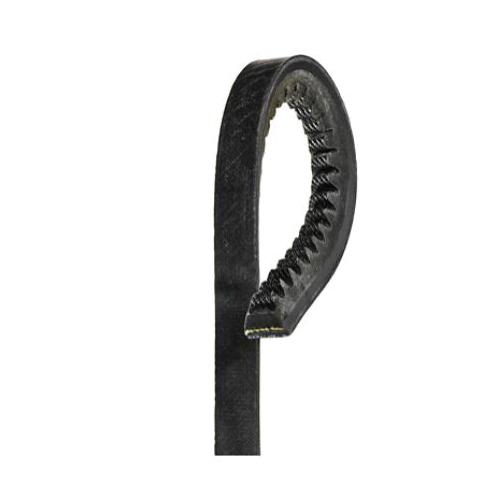

When your power transmission application needs a high horsepower solution but is constrained by drive weight or physical space, the answer is Super HC® molded notch belts. Our proprietary construction process provides a superior combination of flex and load-carrying capacity, transmitting up to 3X the horsepower versus comparably sized belts. Super HC® MN V-belts put more power where high speeds, high speed ratios or small pulley diameters are required, offering significant benefits over classical section V-belts. Developed through specialized research, Super HC® MN is highly recommended for use on all industrial heavy-duty, narrow section V-belt drives. With an increased transmission efficiency this belt allows for a more compact and highly economical drive design.

Gates® Super HC® V-Belt, Series, Model, Section Size 5VX, Outside Length 83.35, Top Width 0.59 in, Thickness 0.53 in, Pitch Length in, Rib Width, Angle 41, Load Capacity deg, Pulley Diameter, Number of Ribs, Construction Molded, Reinforced Material, Resists Fatigue, Flexing Force, Shock Load, Tensile, Material Ethylene, Temperature Rating -60 to 250, Color deg F, Finish, Domestic/Import, Suitable For Use With, Additional Information

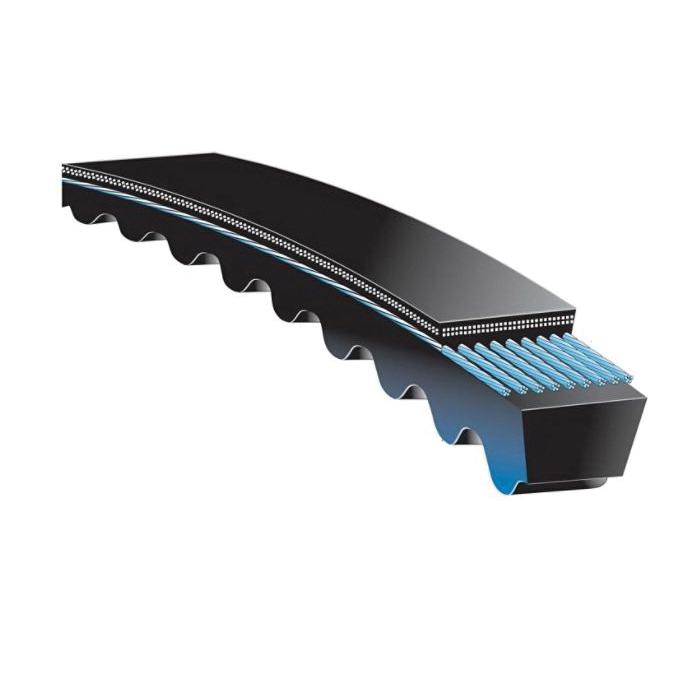

• Flex-bonded tensile cords are vulcanized as one solid unit making the belt highly resistant to tensile and flexing forces, fatigue and shock loads
• Precision ground straight sidewalls give a uniform wedging action and ensure the belt fits correctly in the pulley grooves

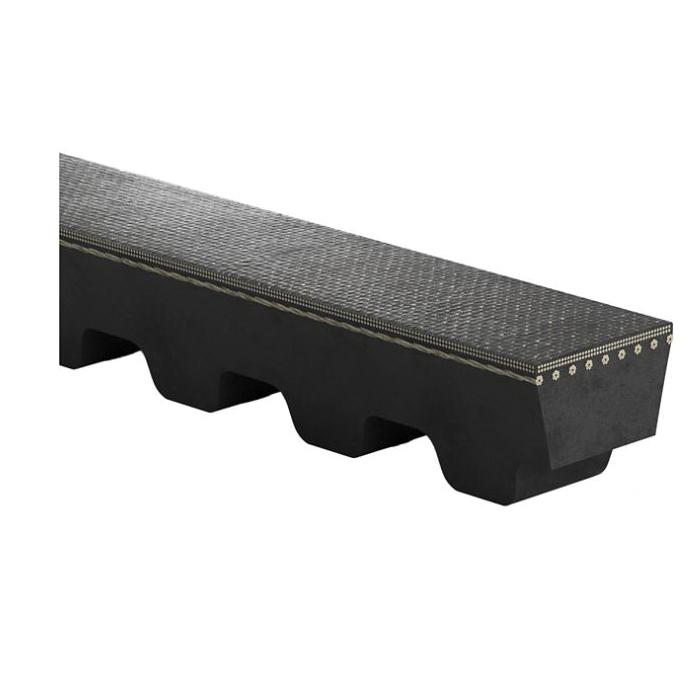

• Molded notches reduce and evenly distribute thermal and bending stresses
• With an increased transmission efficiency this belt allows for a more compact and highly economical drive design by reducing size of pulleys, bearings, guards and mounts
• Improved belt life reducing expensive maintenance time
