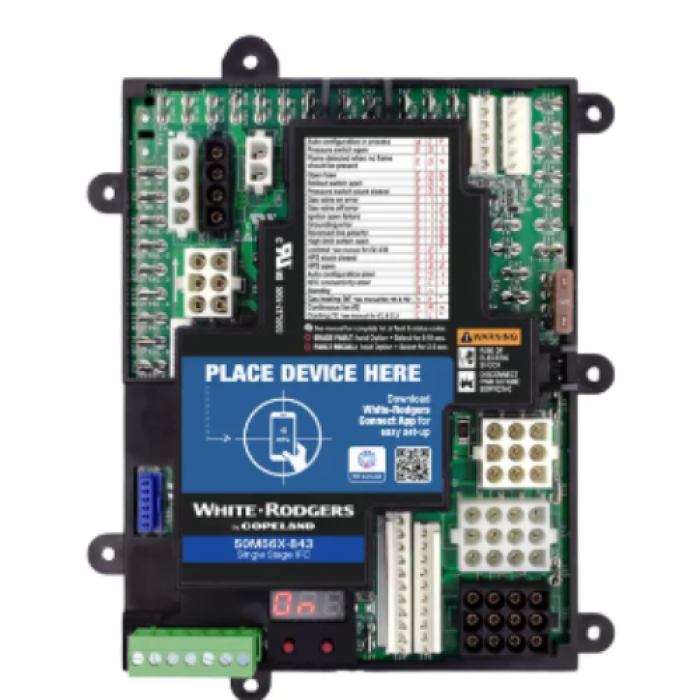

Copeland™ 50M56X-843 Ignition Control Kit, 25 V, 0.8 A, 60 Hz

Copeland™ 50M56X-843 50M56X-843
  • Item ID: 50M56X-843
  • Min. Order Qty: 1
  • Item ID: 50M56X-843
  • Brand: Copeland™
  • loading

Universal single-stage HSI integrated furnace control for PSC and ECMx blower motors. Includes a universal 120 V nitride ignitor and utilizes the WHITE-RODGERS™ connect app for simple configuration and diagnostics.

Copeland™ Ignition Control Kit, 25 V, 0.8 A, 60 Hz, 14.5 A Full Load, 25 A Locked Rotor Contact Rating, -40 to 175 deg F, Liquid Petroleum, Liquid Propane Gas Air Mixtures Gas, For Use With: PSC and ECMx Blower Motors, Additional Information: 8-1/4 in L x 6-1/2 in W x 1-1/2 in D Dimension, 5 to 93% Relative Humidity, 1-Stage

  • Reduce inventory by replacing over 550 part numbers
  • Quick configuration (without power) and diagnostics with the WHITE-RODGERS™ connect app
  • OEM harness detection, no additional harnesses required
  • Seven segment LED display provides unlimited configuration options
  • Rollout accessory is not required
  • Thermostat connector block for simple wiring
Additional Information      :      8-1/4 in L x 6-1/2 in W x 1-1/2 in D Dimension, 5 to 93% Relative Humidity, 1-Stage
Amperage Rating      :      0.8 A
Contact Rating      :      14.5 A Full Load, 25 A Locked Rotor
Frequency Rating      :      60 Hz
Gas Type      :      Liquid Petroleum, Liquid Propane Gas Air Mixtures
Suitable For Use With      :      PSC and ECMx Blower Motors
Temperature Rating      :      -40 to 175 deg F
Voltage Rating      :      25 V
