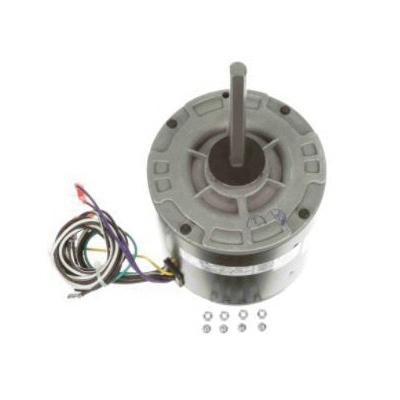

Century® EM3739F Condenser Fan Motor, 460 V, 2.8 A, 3/4 hp, 1075 rpm Speed, 0.56 kW, 1 ph -Phase, 60 Hz, 48Y Frame
- Item ID: EM3739F
- Min. Order Qty: 1
- Item ID: EM3739F
- Brand: Century®
-
-
Century® Condenser Fan Motor, 460 V, 2.8 A, 3/4 hp, 1075 rpm, 0.56 kW, 1 ph Phase, 60 Hz, Totally Enclosed Motor Enclosure, 48Y Frame, 1/2 in Dia, 6 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Extended Studs Mounting, F Insulation Class, Air Over, 1 Service Factor, 6 Poles, Flat Shaft Design, 5 in Frame Length, Rolled Steel, 70 deg C, 5.7 in Dia x 12.17 in L
- Permanent split capacitor (PSC), capacitor required 15 uF, 370 V (not supplied with motor)
- Thermal protection
- Extended studs shaft and lead end, mounting holes in shell, belly band
| Amperage Rating | : | 2.8 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.7 in Dia x 12.17 in L |
| Duty Type | : | Air Over |
| Frame Length | : | 5 in |
| Frame Size | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Insulation Class | : | F |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Totally Enclosed |
| Mounting Type | : | Extended Studs |
| Number of Poles | : | 6 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Design | : | Flat |
| Shaft Size | : | 1/2 in Dia, 6 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 70 deg C |
| Voltage Rating | : | 460 V |
Century® EM3739F
