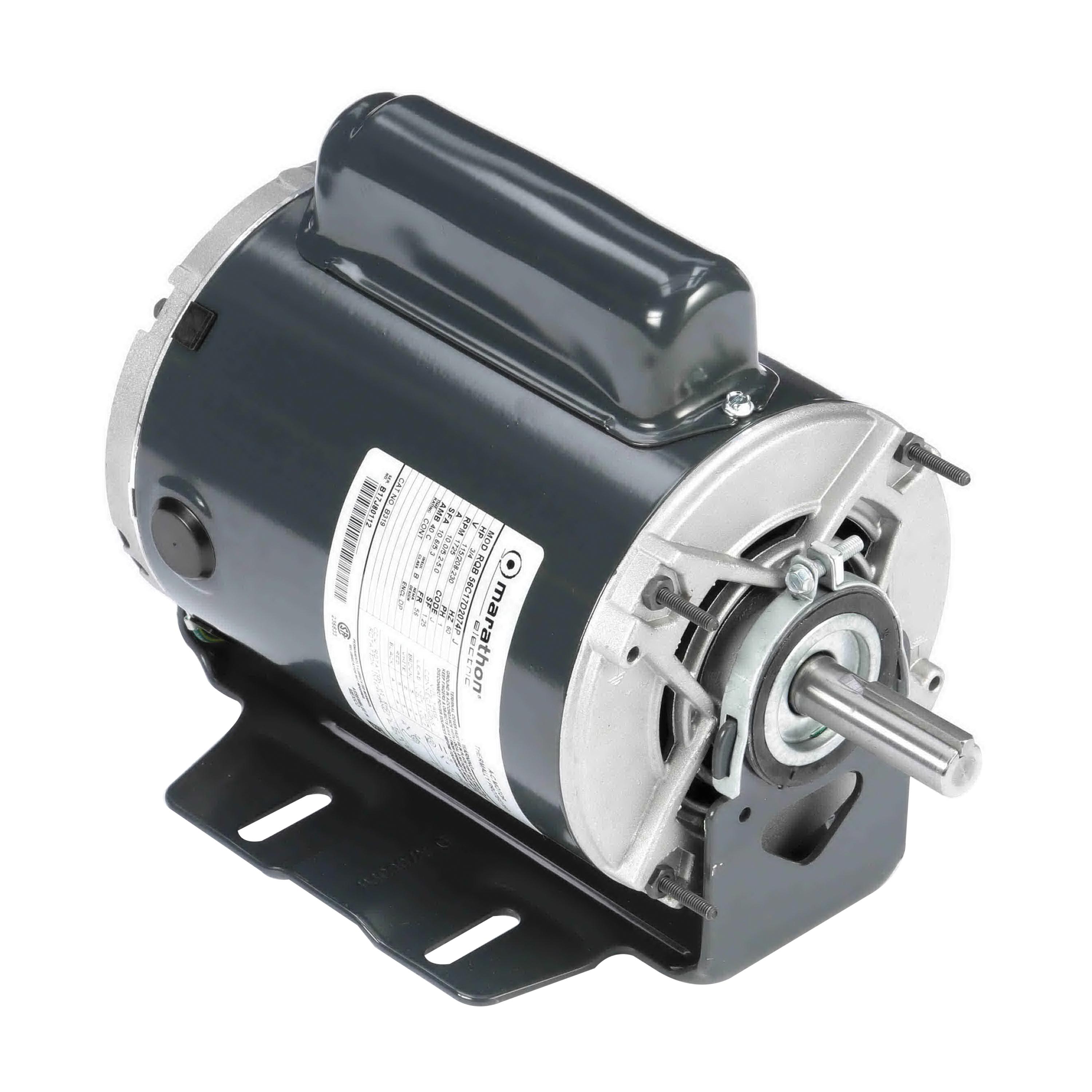

Marathon® 056C17D2074 B319 Motor, 115/208 to 230 VAC, 10/5.2 to 5 A, 3/4 hp, 1725 rpm Speed, 0.56 kW, 1 ph, 60 Hz
- Item ID: B319
- Min. Order Qty: 1
- Item ID: B319
- Brand: Marathon®
-
-
Marathon® Motor, Model: 056C17D2074, 115/208 to 230 VAC, 10/5.2 to 5 A, 3/4 hp, 1725 rpm, 0.56 kW, 1 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 56 Frame, 0.625 in Dia x 1.88 in L Shaft, Counter-Clockwise Rotation, 1 Speed, T Shaft Type, 70.1 % Efficiency, Ball Bearing, Cradle Base, Stud Mounting, Continuous, B Insulation Class, 4 Poles, 1.25 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 5.61 in Dia x 10.22 in L
- Thermal overload protection
- Capacitor start design for high starting torque
- Capacitor start/capacitor run design for higher-efficiency
- 48Y and 48YZ frame have 48/56 frame mounting holes
| Amperage Rating | : | 10/5.2 to 5 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.61 in Dia x 10.22 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 70.1 % |
| Frame Size | : | 56 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Model | : | 056C17D2074 |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Cradle Base, Stud |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Rotation Type | : | Counter-Clockwise |
| Service Factor | : | 1.25 |
| Shaft Size | : | 0.625 in Dia x 1.88 in L |
| Shaft Type | : | T |
| Speed Rating | : | 1725 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/208 to 230 VAC |
Marathon® B319
