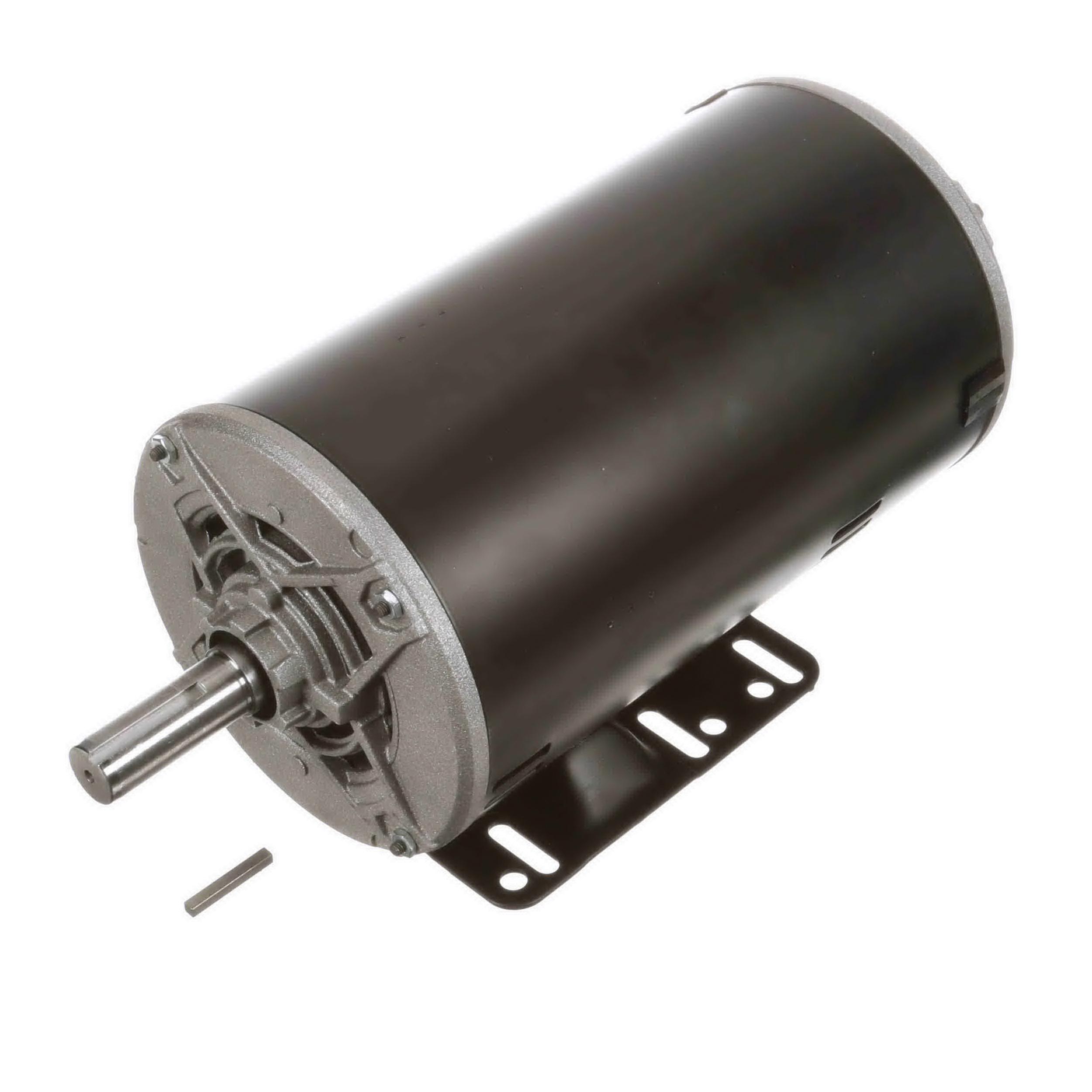

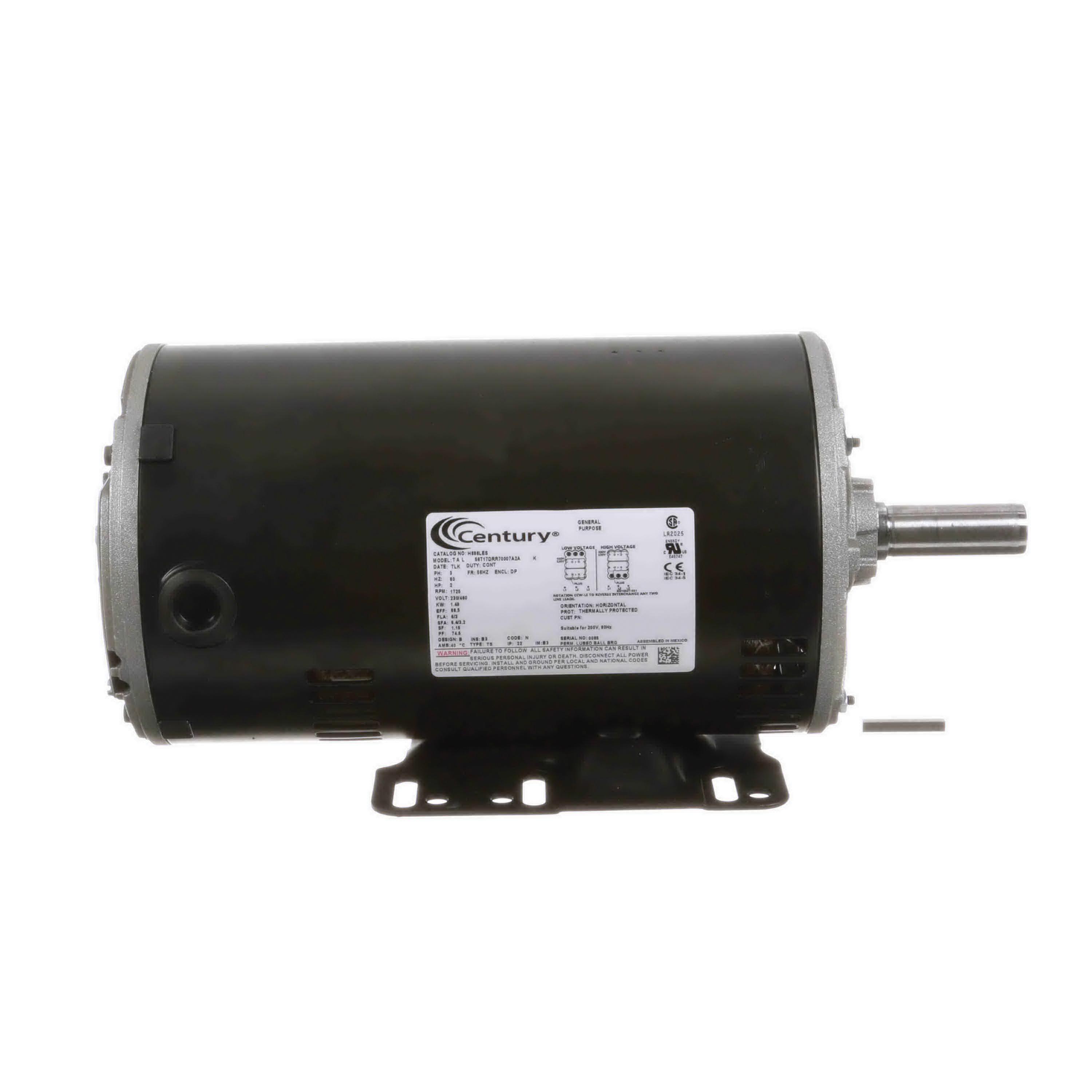

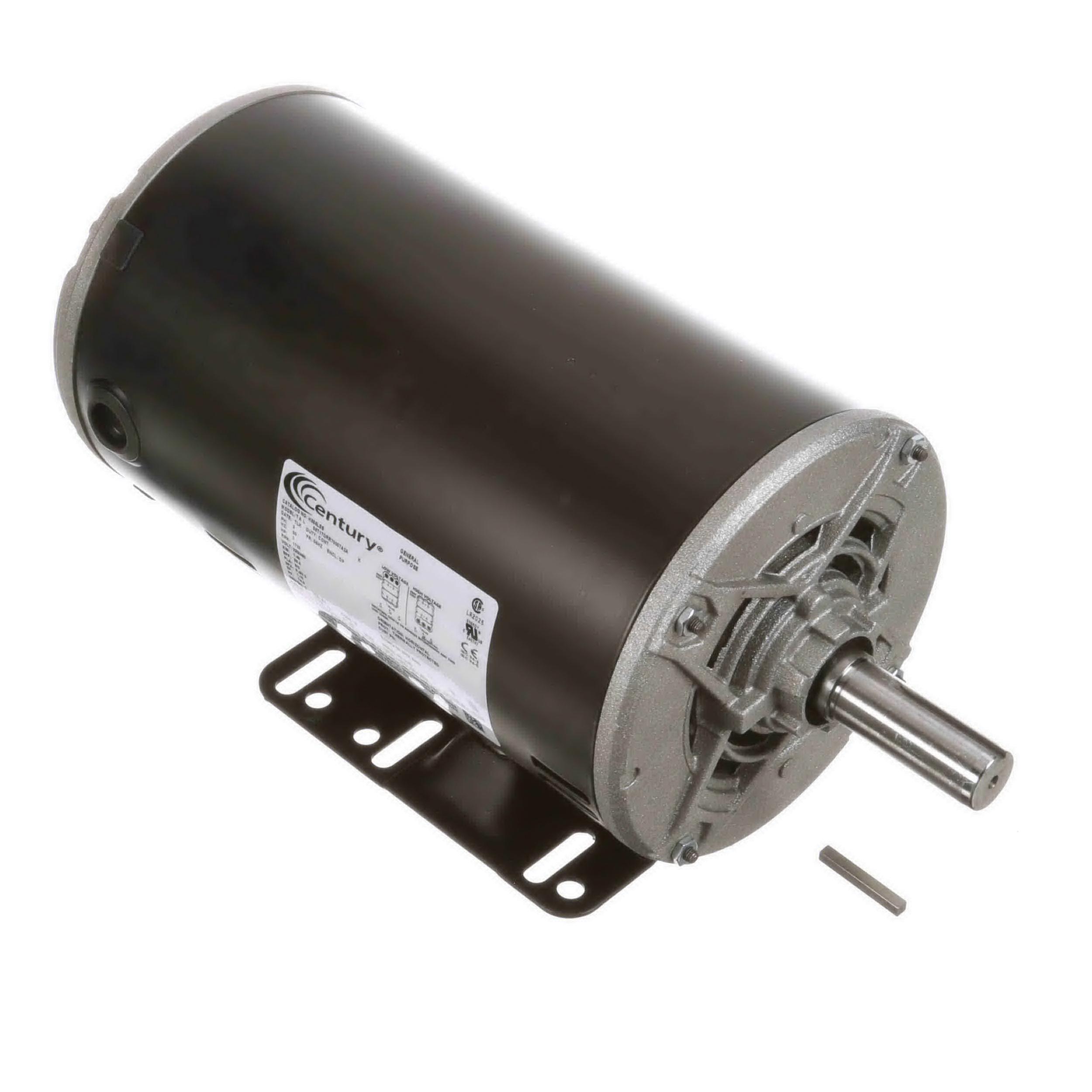

Century® H886LES Motor, 230/460 VAC, 6/3 A, 2 hp, 1725 rpm Speed, 1.5 kW, 3 ph -Phase, 60 Hz, 10.15 in Frame
- Item ID: H886LES
- Min. Order Qty: 1
- Item ID: H886LES
- Brand: Century®
-
-
Century® Motor, 230/460 VAC, 6/3 A, 2 hp, 1725 rpm, 1.5 kW, 3 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 10.15 in Frame, 7/8 in Dia x 2-1/4 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Across The Line Starting Method, Class B Insulation Class, Premium Motor Efficiency Group, 1.15 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 14.85 in L
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
- Premium efficiency promotes improved reliability
- Heavy-duty, rolled steel construction ensures motor durability
- Permanently lubricated sealed bearings extend the lifetime of the motor
| Amperage Rating | : | 6/3 A |
| Bearing Type | : | Ball |
| Dimensions | : | 14.85 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 10.15 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Motor Efficiency Group | : | Premium |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Rating | : | 1.5 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in Dia x 2-1/4 in L |
| Speed Rating | : | 1725 rpm |
| Starting Method | : | Across The Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 230/460 VAC |
No documents
Century® H886LES
