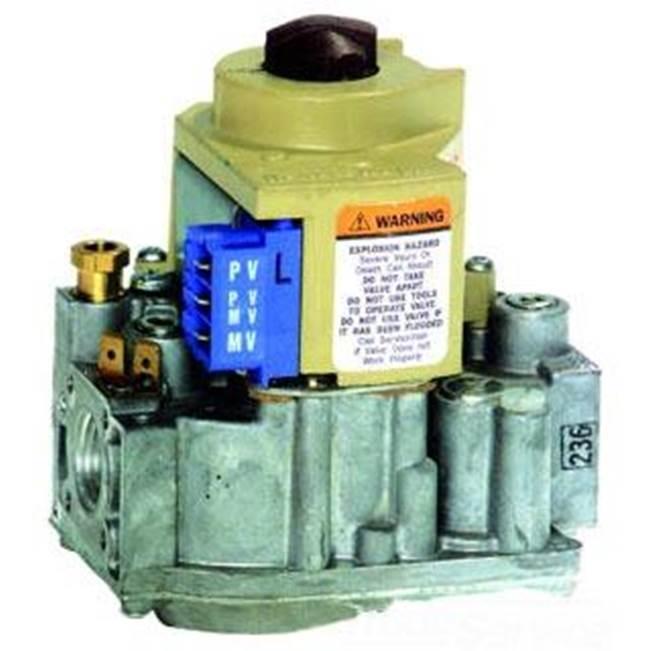

1/2Inx1/2In Combination Gas Valve
- Item ID: VR8204M1091
- Min. Order Qty: 1
- Item ID: VR8204M1091
- Brand: resideo
-
-
1/2Inx1/2In Combination Gas Valve
| Electrical Connection | : | 1/4 in Quick-Connect Male Terminal |
| End Type | : | NPT |
| Frequency Rating | : | 60 Hz |
| Gas Type | : | Liquid Propane, Natural Gas |
| Ignition Type | : | Intermittent Pilot |
| Inlet Size | : | 1/2 in |
| Nominal Capacity | : | 20000 to 200000 Btu/hr |
| Outlet Size | : | 1/2 in |
| Overall Height | : | 4-15/16 in |
| Overall Length | : | 2-11/16 in |
| Overall Width | : | 4-1/8 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | VR Series |
| Temperature Rating | : | -40 to 175 deg F |
| Voltage Rating | : | 24 VAC |
