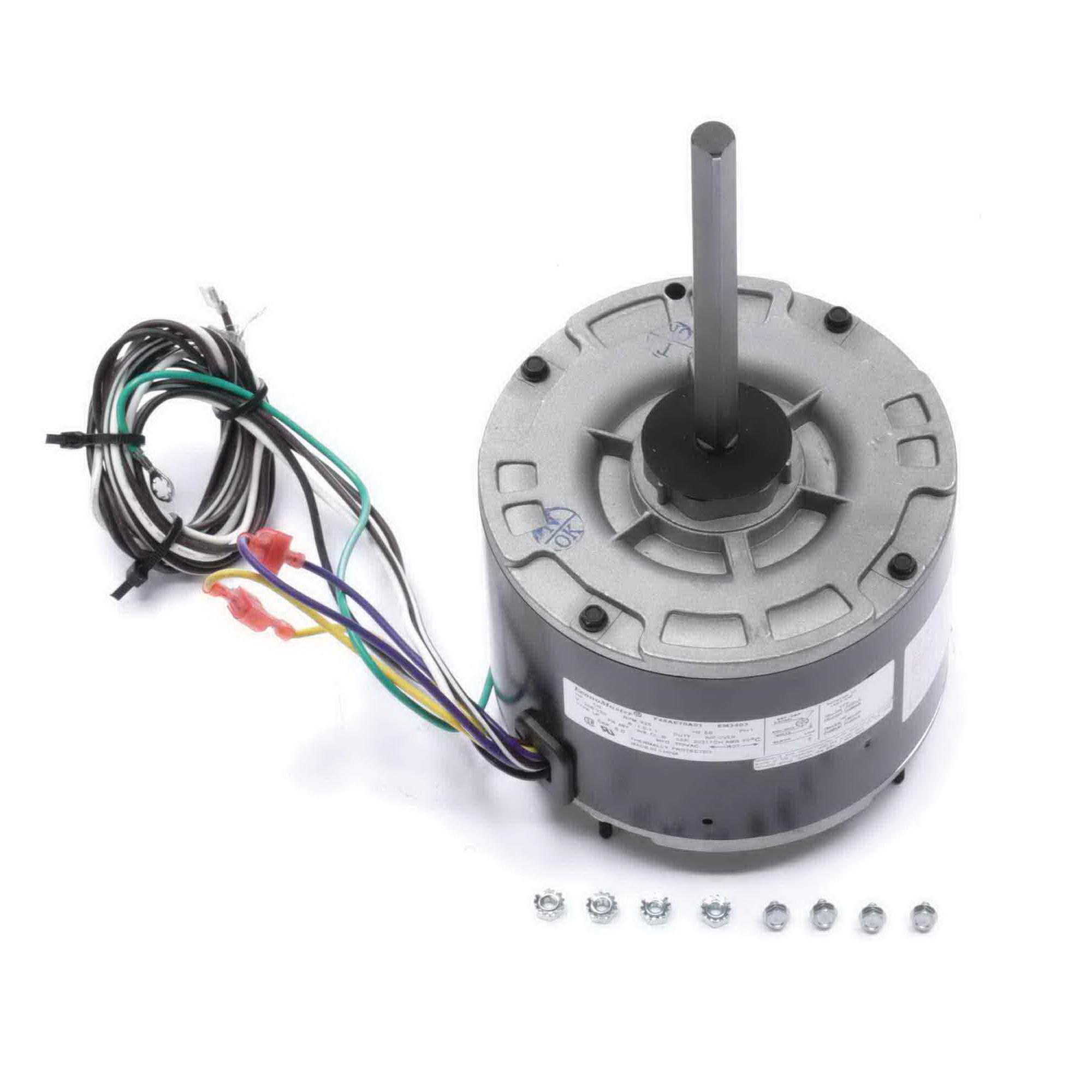

Century® ECONOMASTER® EM3403 PSC Condenser Fan Motor, 1/6 hp, 208 to 230 V, 60 Hz, 1 ph-Phase, 48Y Frame, 825 rpm Speed
- Item ID: EM3403
- Min. Order Qty: 1
- Item ID: EM3403
- Brand: Century®
-
-
Century® ECONOMASTER® PSC Condenser Fan Motor, 1/6 hp HP Rating, 208 to 230 V, 1/1.1 A, 60 Hz, 1 ph, 825 rpm Speed Rating, 1 Speed, Totally Enclosed Air Over, 48Y Frame, 0.5 in Dia x 4.11 in L Shaft, Service Factor: 1, Ball Bearing, Extended Stud Mount, 60 deg C, Insulation Class: Class B, Steel Housing, 10.71 in Overall Height
- Thermally protected
- 1/2 in Dia shaft with double flat
- 36 in leads
- Extended studs lead end, mounting holes in shell, belly band
| Amperage Rating | : | 1/1.1 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Mounting Type | : | Extended Stud |
| Number of Speeds | : | 1 |
| Overall Height | : | 10.71 in |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 0.5 in Dia x 4.11 in L |
| Speed Rating | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 V |
Century® EM3403
