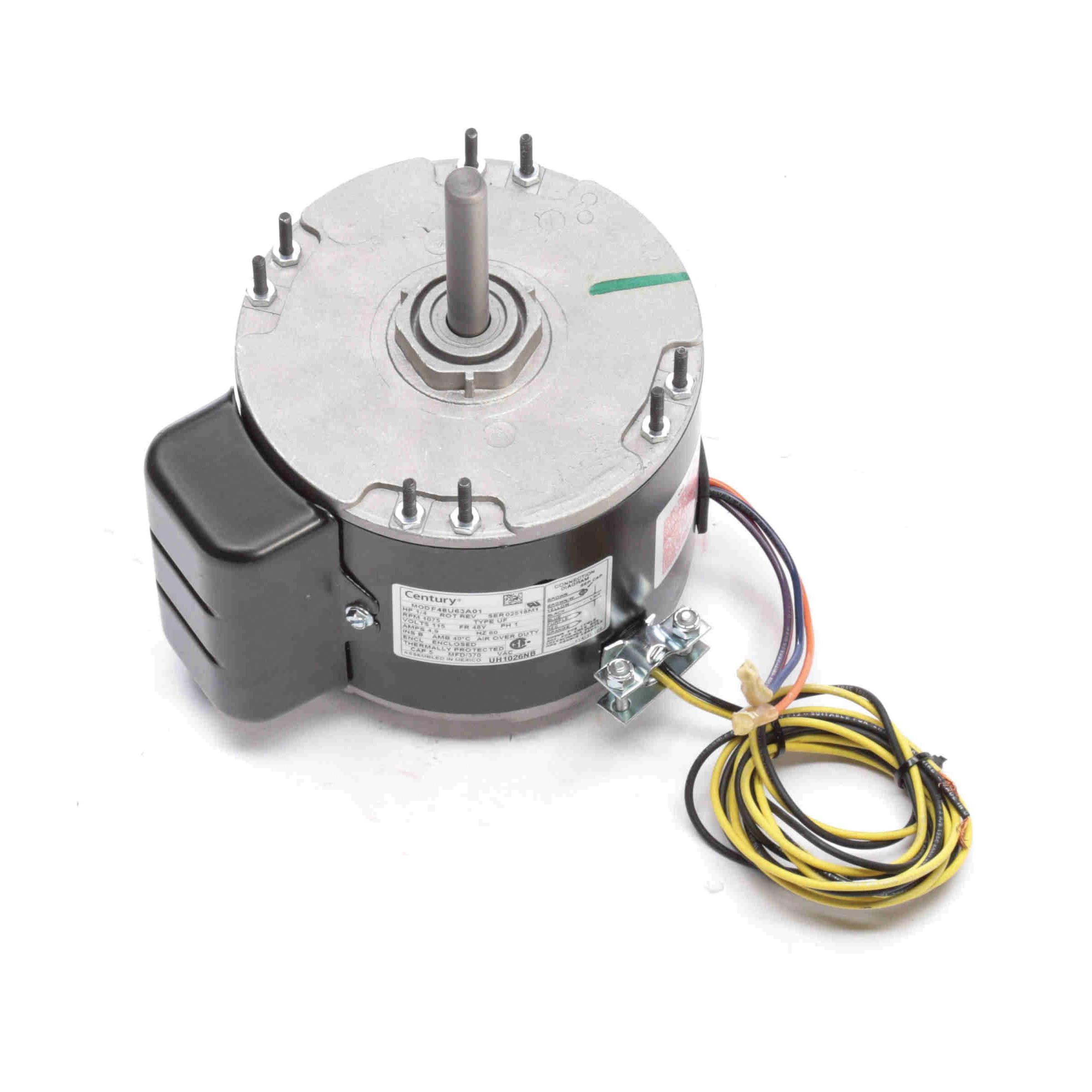

Century® UH1026NB Unit Heater Motor, 1/4 hp, 115 V, 60 Hz, 1 ph-Phase, 48Y Frame, 1075 rpm Speed
- Item ID: UH1026NB
- Min. Order Qty: 1
- Item ID: UH1026NB
- Brand: Century®
-
-
Century® Unit Heater Motor, 1/4 hp HP Rating, 115 V, 4.9 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 1 Speed, Totally Enclosed Air Over, 48Y Frame, 1/2 in Dia x 3 in L Shaft, Service Factor: 1, Ball Bearing, Extended Stud Mount, 40 deg C, Insulation Class: Class B, Steel Housing, 7.79 in Overall Width
- Thermally protected
- 1/2 in Dia double shaft with flat
- 58 in leads
- Extended studs shaft end, resilient rings
| Amperage Rating | : | 4.9 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed Air Over |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Mounting Type | : | Extended Stud |
| Number of Speeds | : | 1 |
| Overall Width | : | 7.79 in |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 3 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |
Century® UH1026NB
