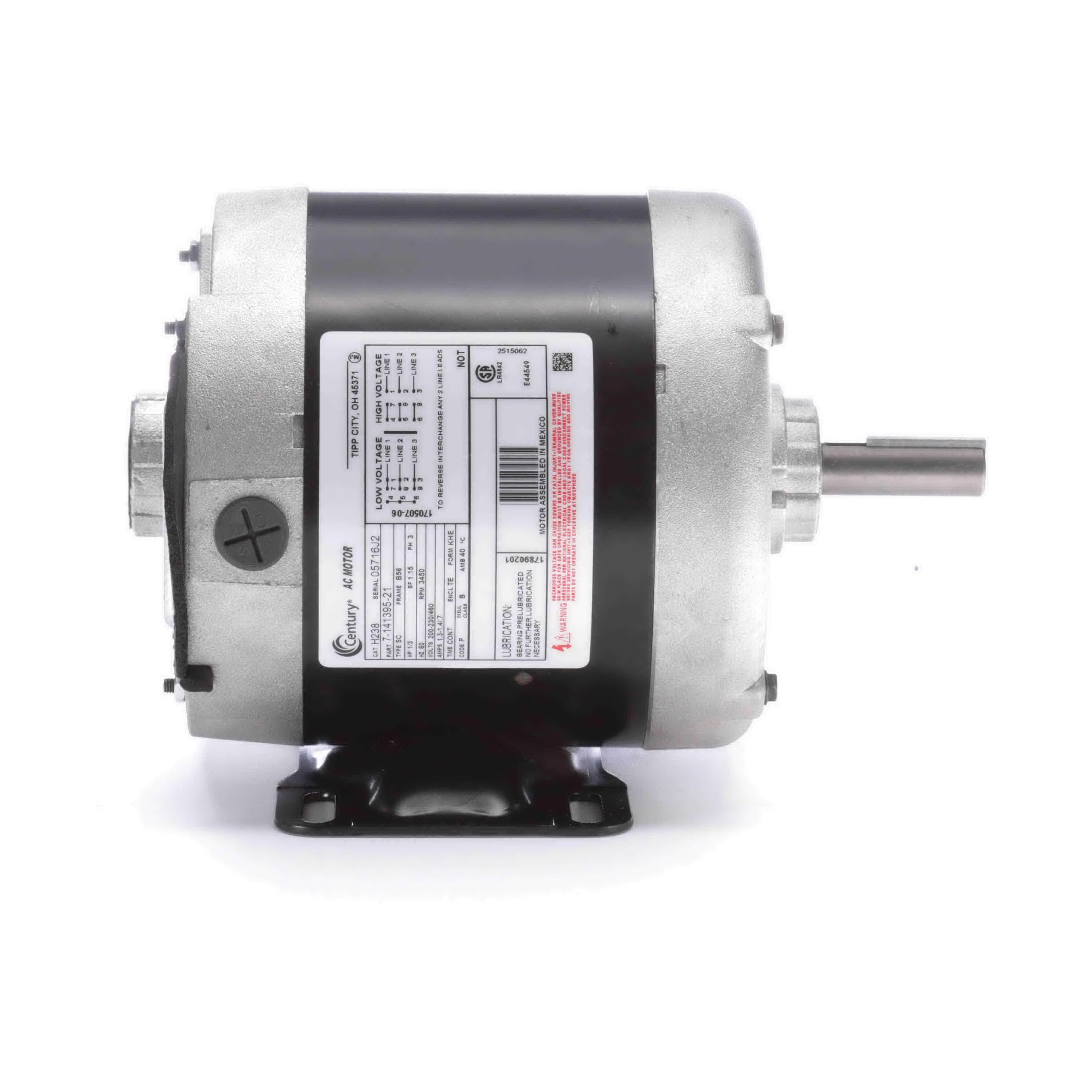

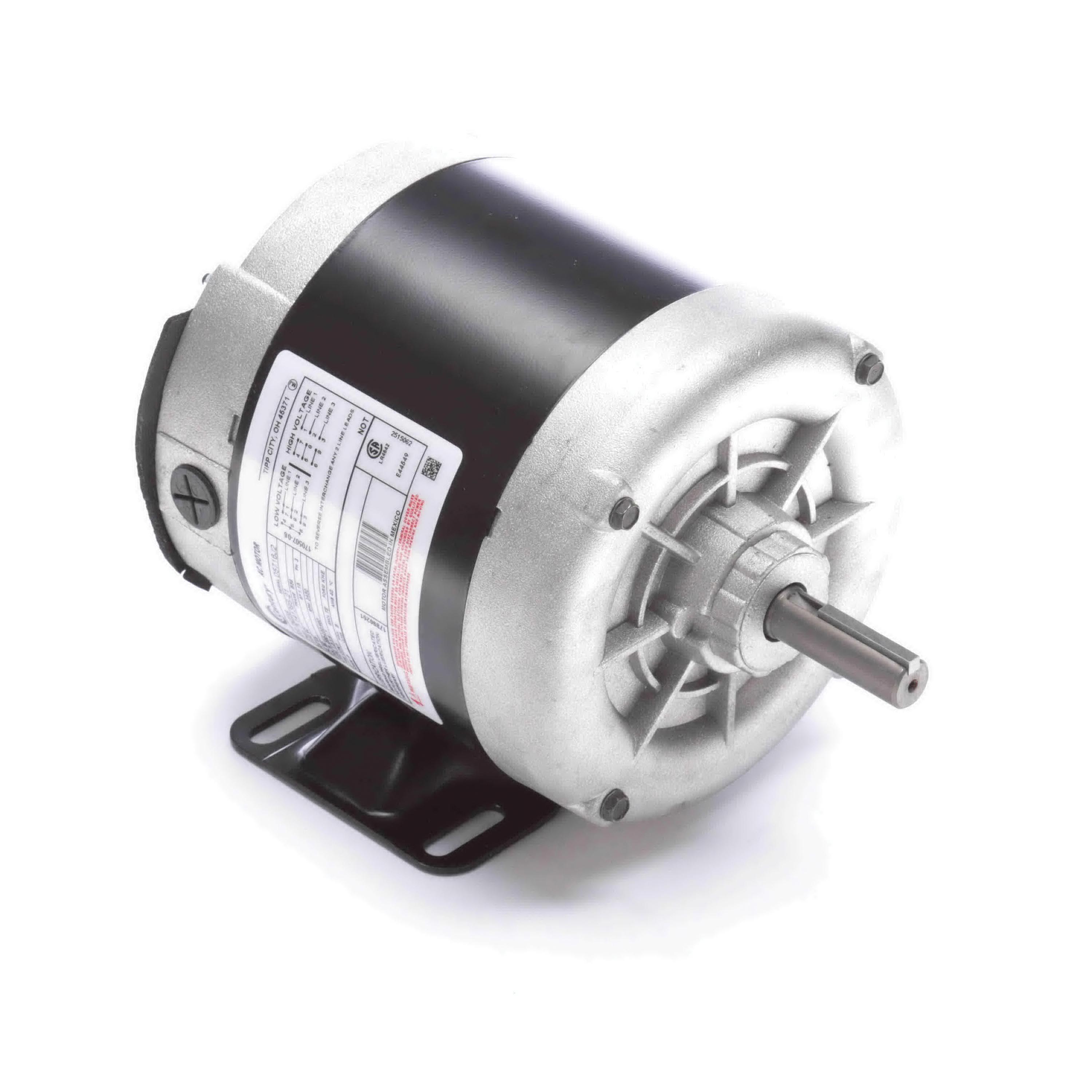

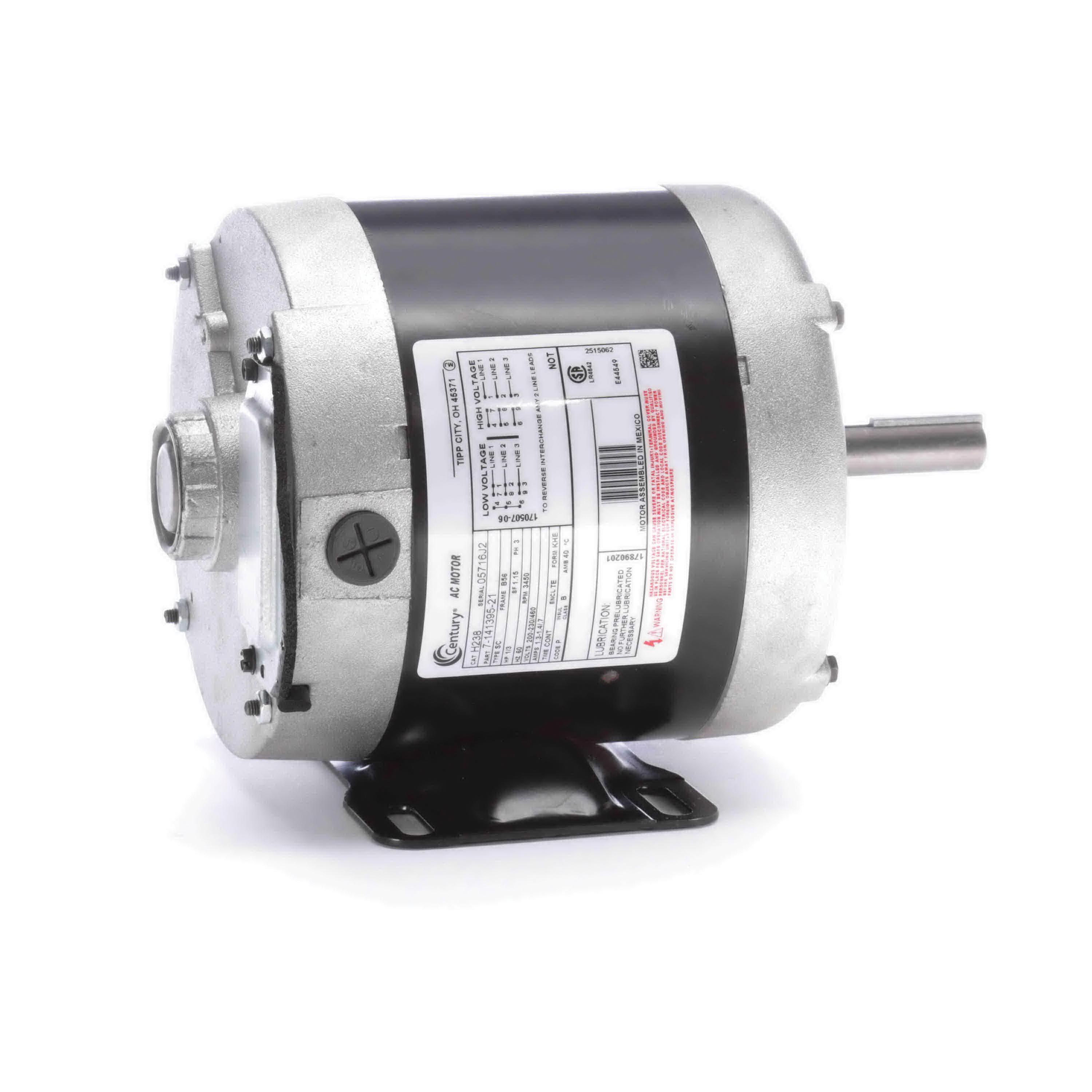

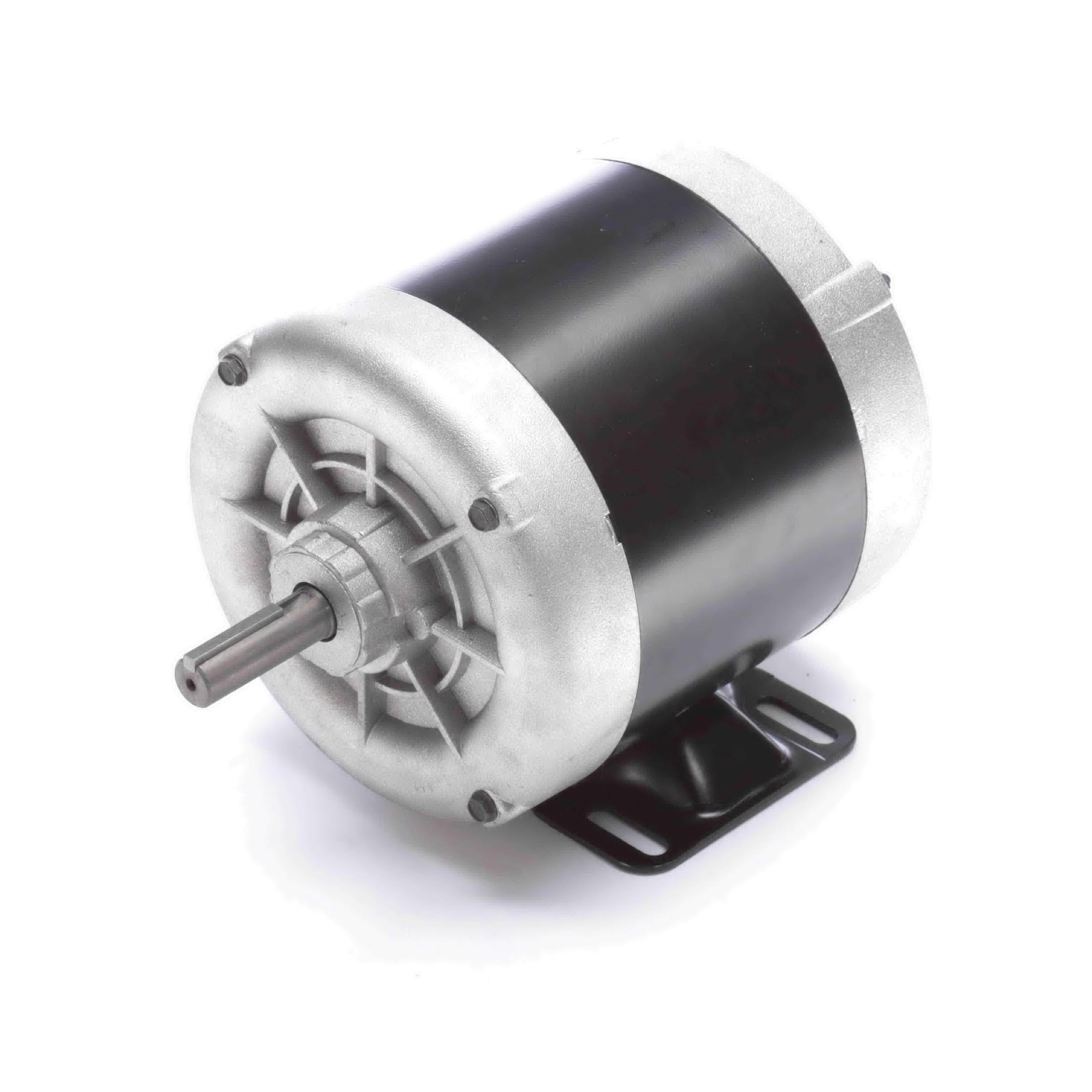

Century® B56 H238 Motor, 200 to 230/460 V, 0.7/1.3 to 1.4 A, 1/3 hp, 3600 rpm Speed, 0.25 kW, 3 ph, 60 Hz

Century® H238 H238
  • Item ID: H238
  • Min. Order Qty: 1
  • Item ID: H238
  • Brand: Century®
  • loading

Century® Motor, Model: B56, 200 to 230/460 V, 0.7/1.3 to 1.4 A, 1/3 hp, 3600 rpm, 0.25 kW, 3 ph Phase, 60 Hz, Totally Enclosed Fan Cooled Motor Enclosure, 3.88 in Frame, 0.625 in Dia x 1.974 in L Shaft, CCW, CW Rotation, 1 Speed, Ball Bearing, 2 Poles, Continuous, Across The Line Starting Method, Class B Insulation Class, 1.15 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 9.88 in L

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
  • Heavy-duty, rolled steel construction ensures motor durability
  • Permanently lubricated sealed bearings extend the lifetime of the motor
  • Suitable for belt driven or fan-on-shaft applications
Amperage Rating      :      0.7/1.3 to 1.4 A
Bearing Type      :      Ball
Dimensions      :      9.88 in L
Duty Type      :      Continuous
Frame Size      :      3.88 in
Frequency Rating      :      60 Hz
HP Rating      :      1/3 hp
Insulation Class      :      Class B
Material      :      Rolled Steel
Model      :      B56
Motor Enclosure Type      :      Totally Enclosed Fan Cooled
Mounting Type      :      Rigid Base
Number of Poles      :      2
Number of Speeds      :      1
Phase      :      3 ph
Power Rating      :      0.25 kW
Rotation Type      :      CCW, CW
Service Factor      :      1.15
Shaft Size      :      0.625 in Dia x 1.974 in L
Speed Rating      :      3600 rpm
Starting Method      :      Across The Line
Temperature Rating      :      40 deg C
Voltage Rating      :      200 to 230/460 V
