Century® 9208F2 9208F2 | Standard Supply

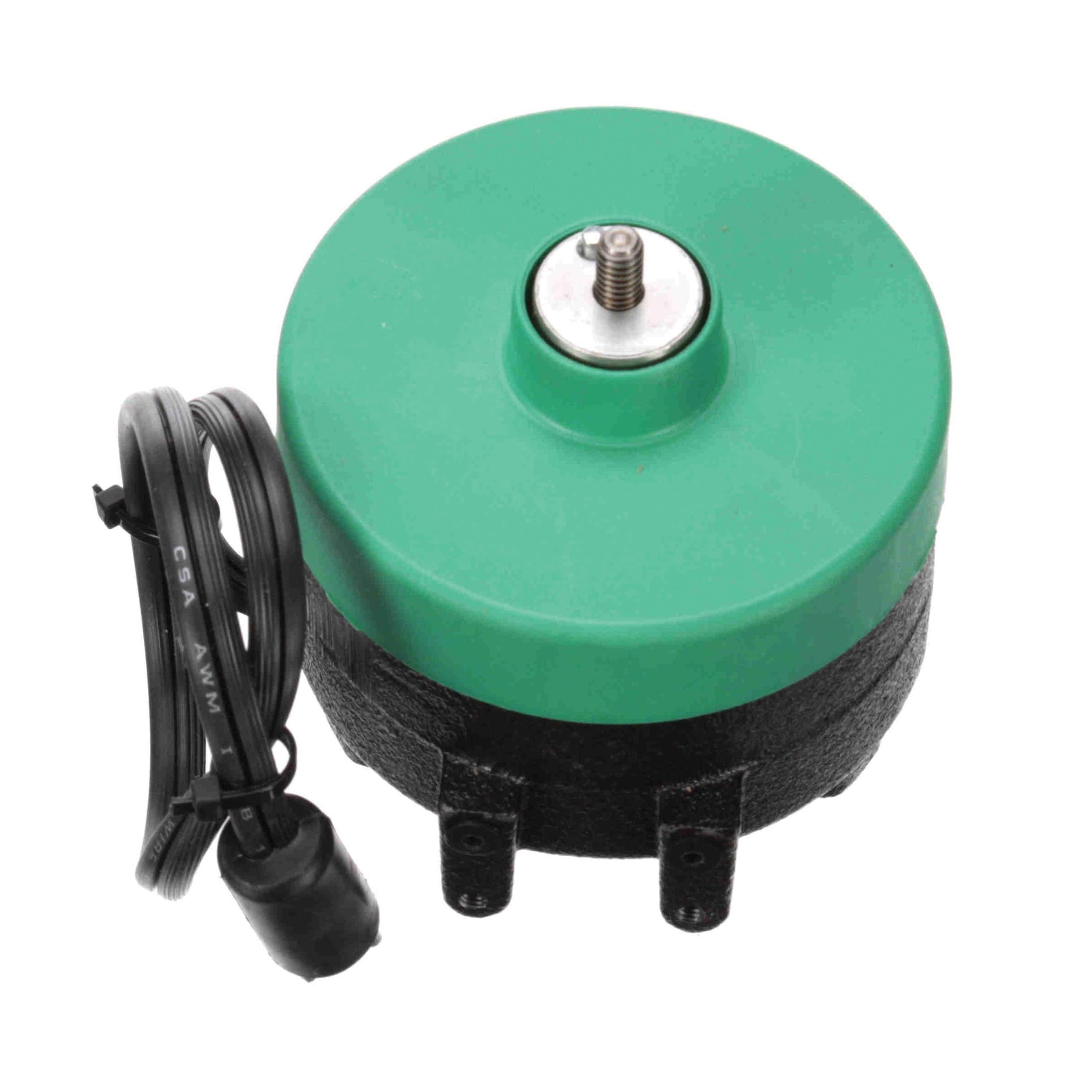

Century® iMotor® 9208F2 ECM Motor, 1/20 hp, 115 V, 60 Hz, 1 ph-Phase, 1550 rpm Speed

Century® 9208F2 9208F2
  • Item ID: 9208F2
  • Min. Order Qty: 1
  • Item ID: 9208F2
  • Brand: Century®
  • loading

Century® iMotor® ECM Motor, 1/20 hp HP Rating, 115 V, 0.47/0.58 A, 60 Hz, 1 ph, 1550 rpm Speed Rating, 1 Speed, Totally Enclosed Air Over, 0.25 in Dia x 0.42 in L Shaft, Service Factor: 1, Hole Mount, 40 deg C, Insulation Class: Class A, Iron Housing

  • Electronically commutated
  • Thermally protected
  • 15 in leads with molded plug
  • Extended studs shaft end
Amperage Rating      :      0.47/0.58 A
Enclosure Type      :      Totally Enclosed Air Over
Frequency Rating      :      60 Hz
HP Rating      :      1/20 hp
Housing Material      :      Iron
Insulation Class      :      Class A
Mounting Type      :      Hole
Number of Speeds      :      1
Phase      :      1 ph
Service Factor      :      1
Shaft Size      :      0.25 in Dia x 0.42 in L
Speed Rating      :      1550 rpm
Temperature Rating      :      40 deg C
Voltage Rating      :      115 V

Century® 9208F2
