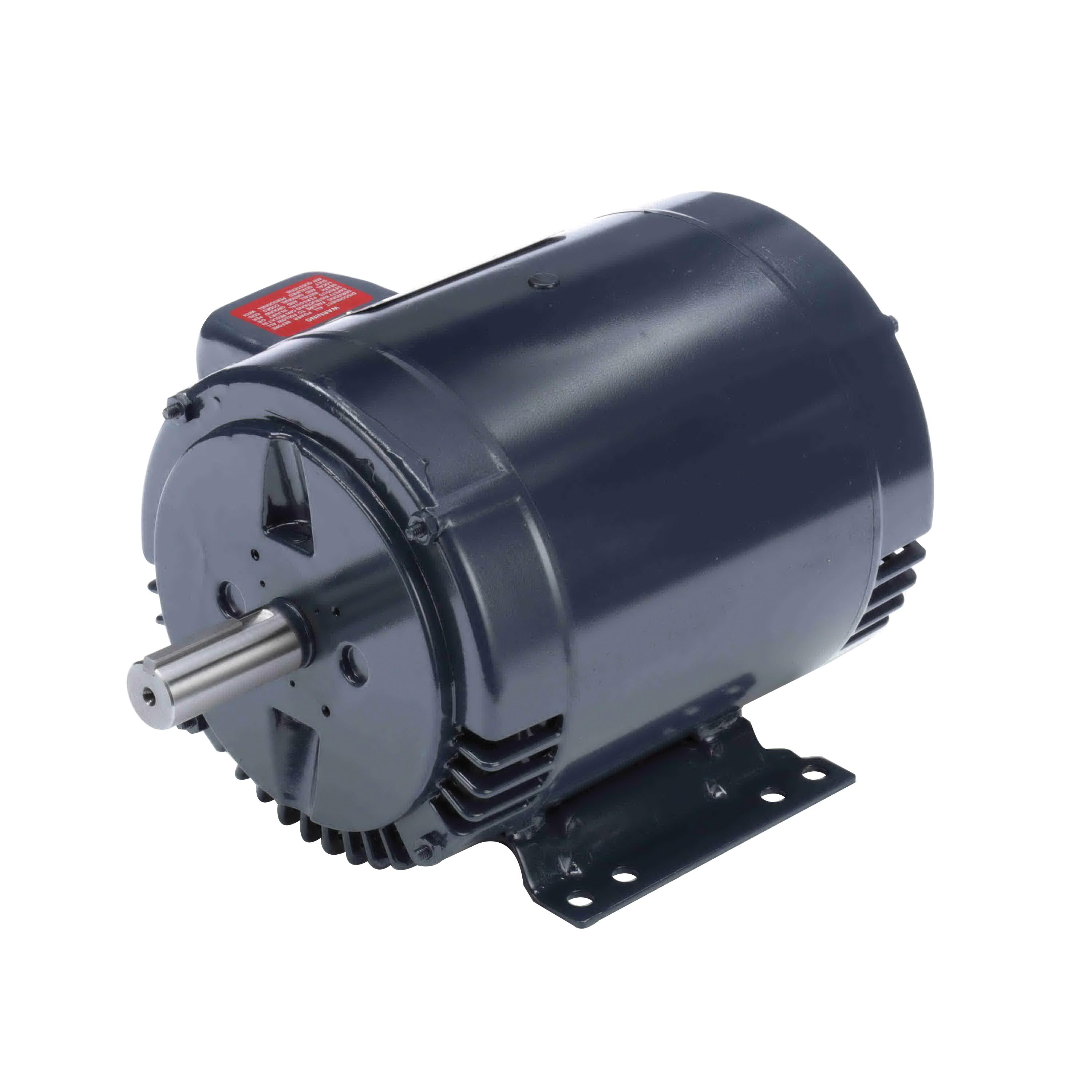

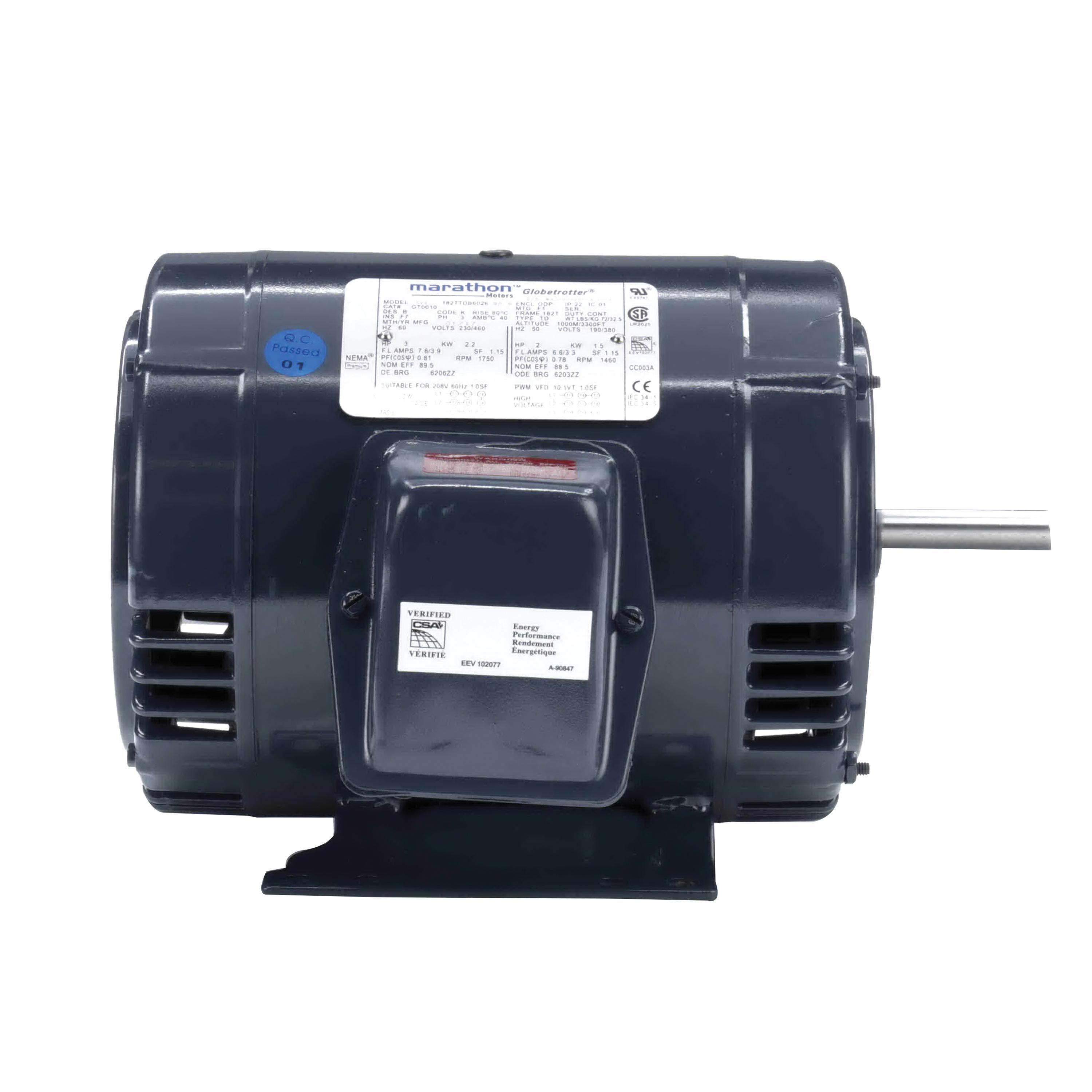

Marathon® 182TTDB6026 GT0010 Motor, 230/460 VAC, 7.6/3.8 A, 3 hp, 1800 rpm Speed, 2.24 kW, 3 ph -Phase, 60 Hz
- Item ID: GT0010
- Min. Order Qty: 1
- Item ID: GT0010
- Brand: Marathon®
-
-
Marathon® Motor, Model: 182TTDB6026, 230/460 VAC, 7.6/3.8 A, 3 hp, 1800 rpm, 2.24 kW, 3 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 182T Frame, 1.15 in Dia x 2.75 in L Shaft, Counter-Clockwise Rotation, 1 Speed, T Shaft Type, 89.5 % Efficiency, Ball Bearing, Rigid Base Mounting, Continuous, F Insulation Class, 4 Poles, 1.15 Service Factor, Inverter, Line Starting Method, Rolled Steel, 40 deg C, 8.56 in Dia x 13.72 in L
- Inverter-duty 10:1 variable torque and 2:1 constant torque
- Meets or exceeds NEMA premium efficiency
- Model is in compliance with EISA2007
| Amperage Rating | : | 7.6/3.8 A |
| Bearing Type | : | Ball |
| Dimensions | : | 8.56 in Dia x 13.72 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 89.5 % |
| Frame Size | : | 182T |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3 hp |
| Insulation Class | : | F |
| Material | : | Rolled Steel |
| Model | : | 182TTDB6026 |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Rating | : | 2.24 kW |
| Rotation Type | : | Counter-Clockwise |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1.15 in Dia x 2.75 in L |
| Shaft Type | : | T |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Inverter, Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 230/460 VAC |
Marathon® GT0010
