Broan-NuTone® AE110F1 AE110F1 | Standard Supply

Broan-NuTone® Flex Series AE110F1 Ventilation Fan Finish Pack, 120 VAC, 0.3 A, Steel Housing, Galvanized Housing

  • Item ID: AE110F1
  • Min. Order Qty: 1
  • Item ID: AE110F1
  • Brand: Broan-NuTone®
  • loading

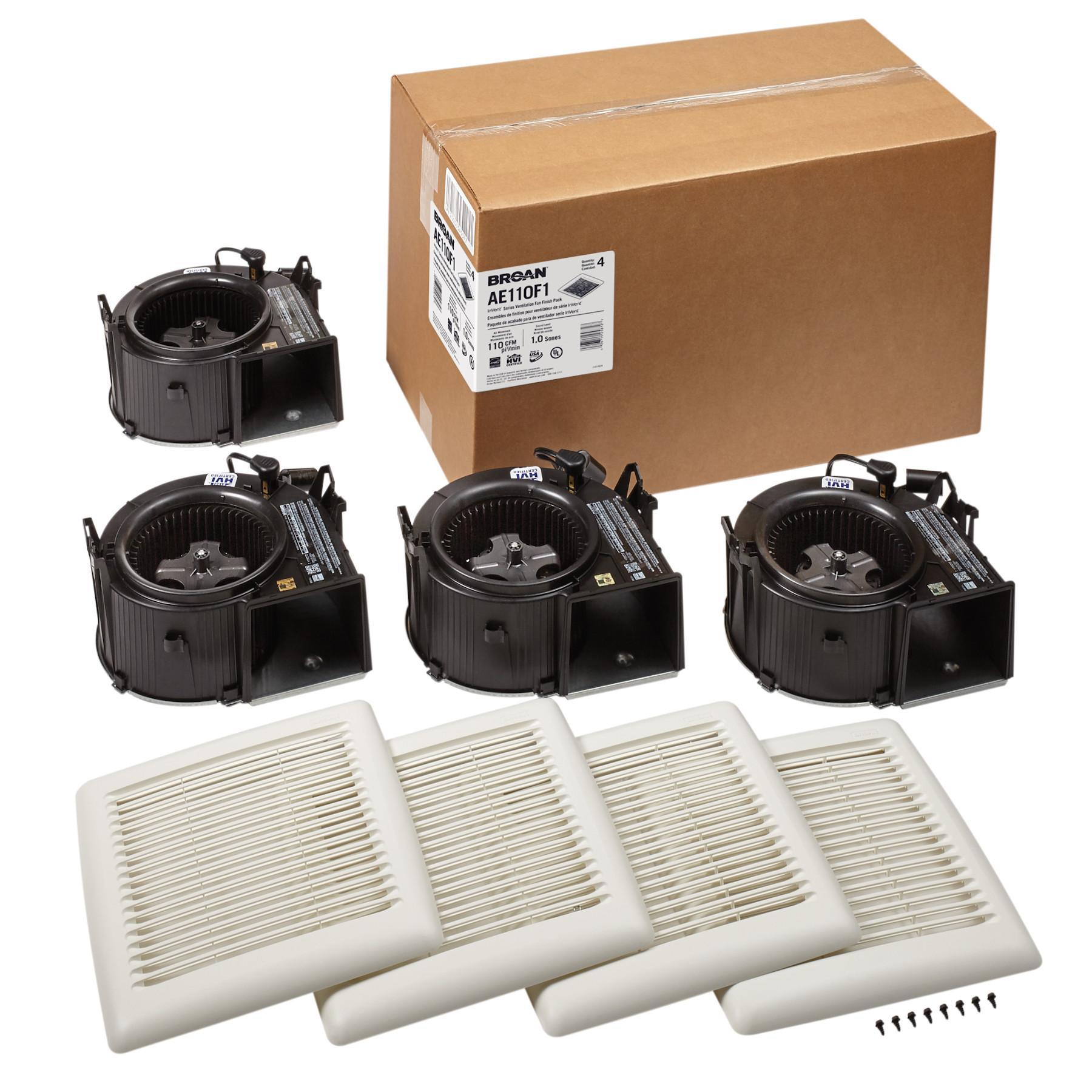

Project packs are ideal for contractors and builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging product. Once all construction is complete, the purchase of a finish pack, 4 grilles and 4 motor/blower wheels, can be made to add the finishing touches to the room. The Flex series housing and finish packs provide revolutionary innovations such as foldable mounting ears, a new damper, tighter housing to decrease air leakage, while the finish pack grilles complement any decor.

Broan-NuTone® Ventilation Fan Finish Pack, Series: Flex, 120 VAC, 0.3 A, 60 Hz, Power Rating: 23.4 W, Ceiling Mounting, 11-1/2 x 12 in Grille, 4 in Duct, 110 cfm, 105 sq-ft Coverage Area, 1.5 sones Noise, 9-1/4 in L Overall, 10 in W Overall, 5-3/4 in H Overall, Steel Housing, Housing Finish: Galvanized, White Housing

  • Ventilation Fan Finish Pack
  • 110 cfm, sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 1.5 sones for ultra quiet performance, you might not notice it's on
  • TrueSeal damper technology reduces air leakage up to 50%
  • EZ Duct™ connector can be installed from the room side, with no attic access required
  • Powerful enough for rooms up to 100 sq-ft
  • Corrosion-resistant galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation
  • Dynamically balanced centrifugal blower wheel for quiet, efficient performance
  • Low RPM for quiet operation
Amperage Rating      :      0.3 A
CFM Rating      :      110 cfm
Coverage Area      :      105 sq-ft
Duct Size      :      4 in
Frequency Rating      :      60 Hz
Grille Size      :      11-1/2 x 12 in
Housing Color      :      White
Housing Finish      :      Galvanized
Housing Material      :      Steel
Mounting Type      :      Ceiling
Noise Rating      :      1.5 sones
Overall Height      :      5-3/4 in
Overall Length      :      9-1/4 in
Overall Width      :      10 in
Power Rating      :      23.4 W
Series      :      Flex
Voltage Rating      :      120 VAC

Broan-NuTone® AE110F1
