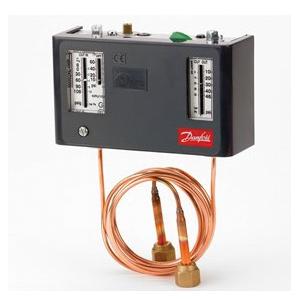

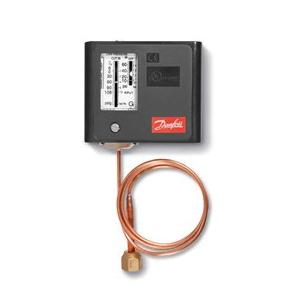

Danfoss KPU-15B Series 060-5250 Pressure Switch, 24 VAC, 1/4 in, Female Flared
- Item ID: 0605250
- Min. Order Qty: 1
- Item ID: 0605250
- Brand: Danfoss
-
-
Danfoss Pressure Switch, KPU-15B Series, 24 VAC, 250 psig Maximum Pressure, 10 to 60 psi, 60 psi Differential Pressure, SPST Dual Pressure Switch, Automatic Reset Switching Action, 1/4 in Connection, Female Flared Connection, -40 to 122 deg F, Bracket, Flat Surface Mounting, IP30 Enclosure, For Use With: R-22, R-134A, R-404A, R-407A, R-407C, R-407F, R-422B, R-422D, R-438A, R-448A, R-449A, R-450A, R-452A, R-507A and R-513A Refrigerants
| Connection Size | : | 1/4 in |
| Connection Type | : | Female Flared |
| Differential Pressure | : | 10 to 60 psi, 60 psi |
| Enclosure Type | : | IP30 |
| Maximum Pressure | : | 250 psig |
| Mounting Type | : | Bracket, Flat Surface |
| Series | : | KPU-15B Series |
| Suitable For Use With | : | R-22, R-134A, R-404A, R-407A, R-407C, R-407F, R-422B, R-422D, R-438A, R-448A, R-449A, R-450A, R-452A, R-507A and R-513A Refrigerants |
| Switch Type | : | SPST Dual Pressure |
| Switching Action | : | Automatic Reset |
| Temperature Rating | : | -40 to 122 deg F |
| Voltage Rating | : | 24 VAC |
Danfoss 060-5250
