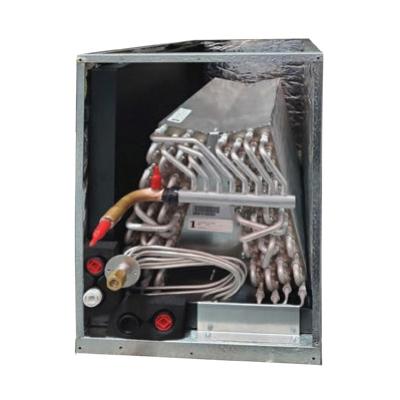

Aspen DE Series DE48B44-210R-402 Cased Coil, Cased Coil, 3.5 to 4 ton, Aluminum
- Item ID: DE48B44-210R-402
- Min. Order Qty: 1
- Item ID: DE48B44-210R-402
- Brand: Aspen
-
-
Aspen Cased Coil, Series: DE Series, Multi-Position, 3.5 to 4 ton, R-22, R-410A, Cased Coil, 7/8 in, 0.08 x 0.084 in Piston Size, 500 psi, Aluminum, Galvanized/Painted, Gray, 27 in H x 17 to 24-1/2 in W x 21-1/2 in D
- Rifled aluminum tubing, enhanced aluminum fins
- Air pressure tested at 500 psi, leak tested with helium, then sealed and nitrogen pressurized
- Left or right hand refrigerant and plumbing connections
- Externally mounted flow rater body with Schrader® valve for hiss-testing
- Heavy-duty plastic or metal drain pans, powder-coated galvanized steel horizontal drain pans standard
- Embossed galvanized cabinets standard, cabinet feature furnace connectors
- Up flow, horizontal right and horizontal left without field modification, down flow application require field kit (included)
- Split access doors in front of cabinet for east service access
- Fully insulated foil faced insulation
- Liquid line - 3/8 in ODS, suction line - 3/4 in ODS
| Cabinet Configuration | : | C |
| Coil Type | : | Cased |
| Color | : | Gray |
| Configuration | : | Multi-Position |
| Connection Size | : | 7/8 in |
| Dimensions | : | 27 in H x 17 to 24-1/2 in W x 21-1/2 in D |
| Expansion Type | : | TXV |
| Finish | : | Galvanized/Painted |
| Item Name | : | DE |
| Material | : | Aluminum |
| Piston Size | : | 0.08 x 0.084 in |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-22, R-410A |
| Series | : | DE Series |
| Tonnage | : | 3.5 to 4 ton |
| Type | : | A COIL |
Aspen DE48B44-210R-402
