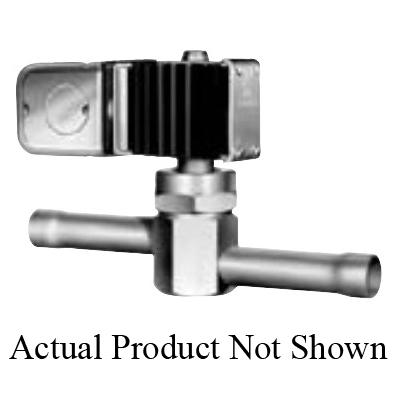

Types E10 Series are compact solenoid valves with pilot operated disc construction for refrigeration and air conditioning. These valves may be mounted horizontally, on their side or in a vertical line. They are suitable for suction line service because very low pressure differential, 1 psi, is required for full operation. The type E10 Series solenoid valves feature extended solder type connections as standard. One important benefit to the user is that all valves in the "E10" Series can be installed without disassembly using either low or no silver content brazing alloy. The MKC-2 and OMKC-2 coil are class "F" temperature rated and are provided as standard, therefore a high temperature coil is not required for discharge service.

Sporlan® Solenoid Valve, Series: E10, 5/8 in Nominal, ODF End, 500 psi, 5/16 in Port, Brass Body, 6-1/2 in Overall Length
