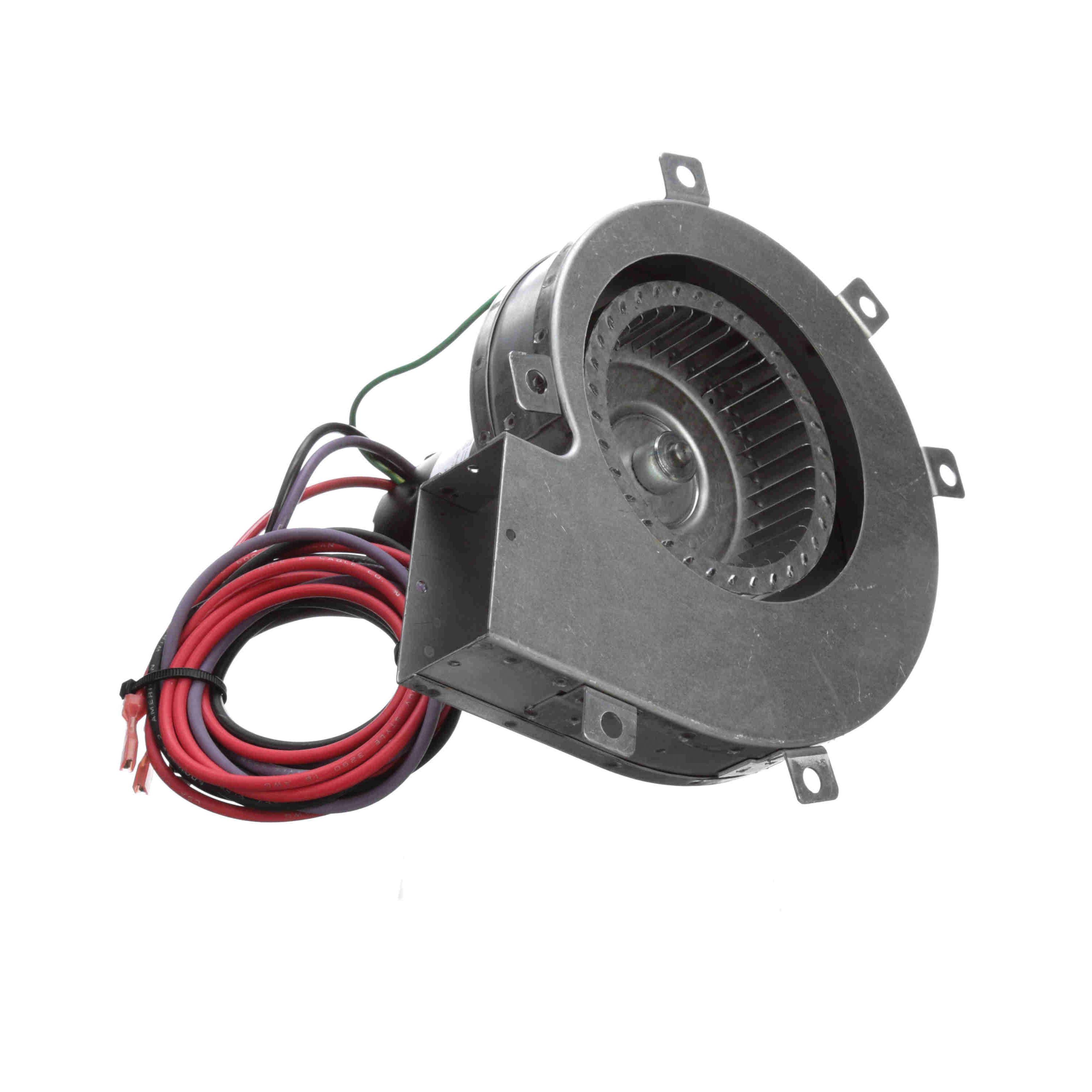

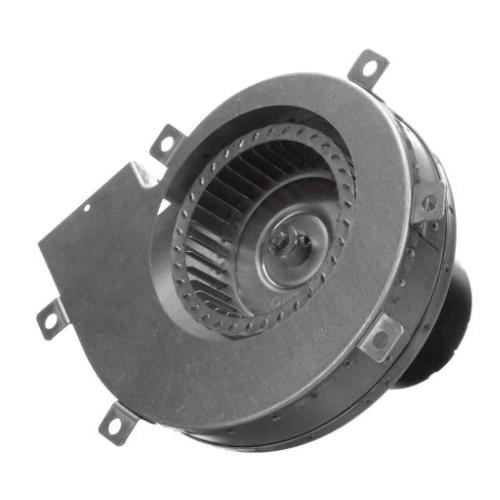

Fasco® A284 Draft Inducer Blower Motor, 208/240 V, 60 Hz, 1 ph-Phase, 3000 rpm Speed
- Item ID: A284
- Min. Order Qty: 1
- Item ID: A284
- Brand: Fasco®
-
-
Fasco® Draft Inducer Blower Motor, 208/240 V, 0.59 A, 60 Hz, 1 ph, 3000 rpm Speed Rating, 1 Speed, Open Air Over, Sleeve Bearing, 40 deg C, Insulation Class: Class B, Steel Housing, Natural, 7-1/4 in Overall Width, 6 in Overall Depth, 7-3/4 in Overall Height
- 3.3 in Dia
- Shaded pole
- Thermally protected
- 55 in leads with spade terminals
| Amperage Rating | : | 0.59 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open Air Over |
| Frequency Rating | : | 60 Hz |
| Housing Color | : | Natural |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Number of Speeds | : | 1 |
| Overall Depth | : | 6 in |
| Overall Height | : | 7-3/4 in |
| Overall Width | : | 7-1/4 in |
| Phase | : | 1 ph |
| Speed Rating | : | 3000 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208/240 V |
