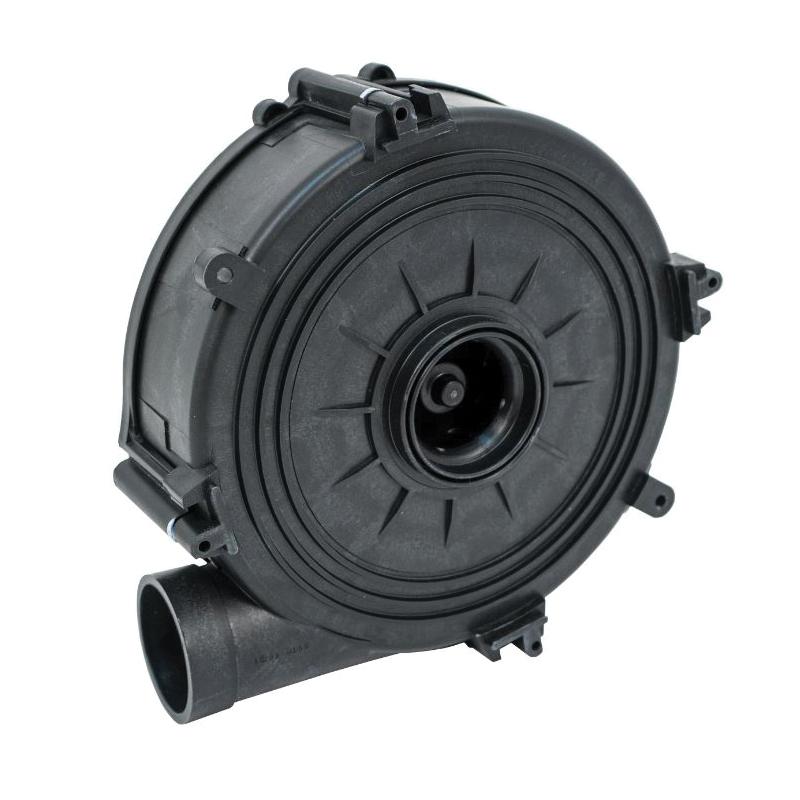

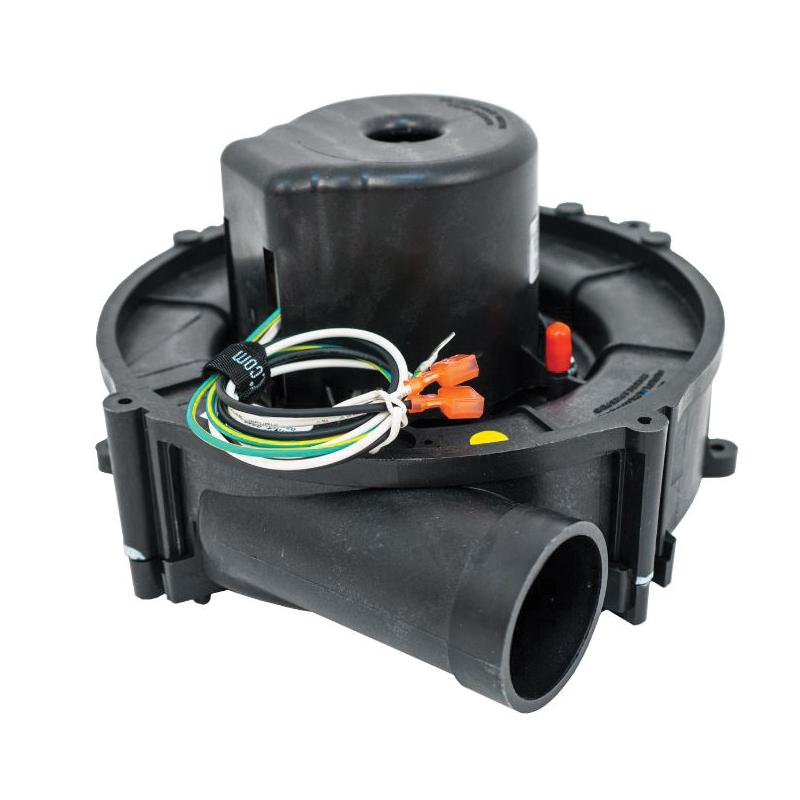

Packard 66338 Draft Inducer, 115 V, 2.4 A, 50 hp, 3000 rpm Speed, Metal/Plastic
- Item ID: 66338
- Min. Order Qty: 1
- Item ID: 66338
- Brand: Packard
-
-
Packard Draft Inducer, 2.4 A, 115 V, 60 Hz, 1 ph, 276 W, 50 hp, 3000 rpm, Ball Bearing, 1 Speed, TEFC Enclosure, Class B Insulation Class, Metal/Plastic, 40 deg C, 10-1/2 in L
- Replaces ICP 1013388 and other models
- Shaded pole motor
- Automatic overload protection
| Amperage Rating | : | 2.4 A |
| Bearing Type | : | Ball |
| Dimensions | : | 10-1/2 in L |
| Enclosure Type | : | TEFC |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 50 hp |
| Insulation Class | : | Class B |
| Material | : | Metal/Plastic |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 276 W |
| Speed Rating | : | 3000 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |
