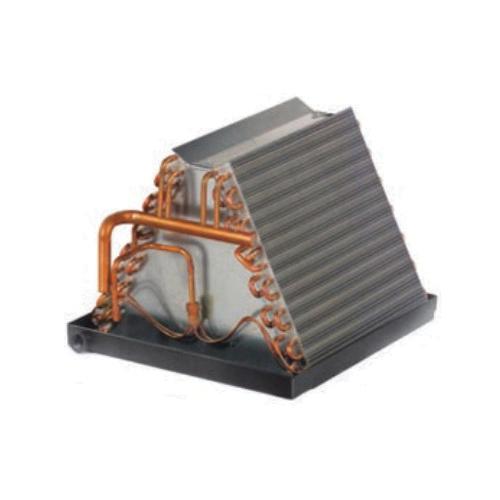

Aspen CM Series CM59A4G-177L-000 Uncased Coil, Uncased Coil, 3.5 to 5 ton, Aluminum/Copper
- Item ID: CM59A4G-177L-000
- Min. Order Qty: 1
- Item ID: CM59A4G-177L-000
- Brand: Aspen
-
-
Aspen Uncased Coil, Series: CM Series, Downflow, 17-3/4 in W x 19-5/8 in D Drain Pan Size, 19-1/2 in H Slab Size, 3.5 to 5 ton, R-22, R-410A, Uncased Coil, 3/4 in, FNPT, 4 Rows, 0.089 x 0.092 in Piston Size, 500 psi, Aluminum/Copper, Galvanized, Gray
- Rifled copper tubing, enhanced aluminum fins
- Immersion tested at 500 psi, then nitrogen pressurized and sealed
- Left hand refrigerant and plumbing connections
- Liquid line Schrader® valve for hiss-testing
- Heavy-duty polypropylene drain pans
- Liquid line - 7/8 in ODS, suction line - 3/4 in ODS
| Coil Type | : | Uncased |
| Color | : | Gray |
| Configuration | : | Downflow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FNPT |
| Drain Pan Size | : | 17-3/4 in W x 19-5/8 in D |
| Finish | : | Galvanized |
| Item Name | : | CM |
| Material | : | Aluminum/Copper |
| Number of Rows | : | 4 |
| Piston Size | : | 0.089 x 0.092 in |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-22, R-410A |
| Series | : | CM Series |
| Slab Size | : | 19-1/2 in H |
| Tonnage | : | 3.5 to 5 ton |
| Type | : | A COIL |
