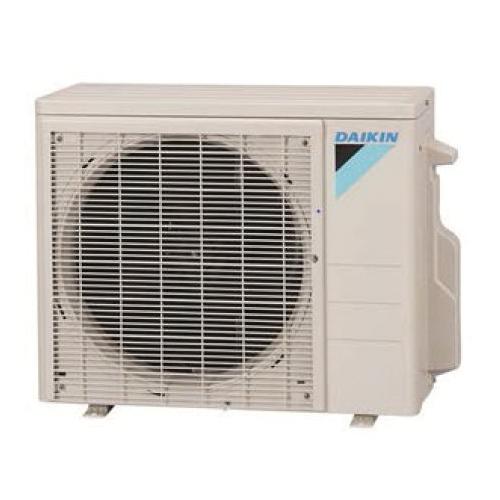

DAIKIN RX_RMVJU Series RX15RMVJUA Heat Pump Condenser, 208/230 V, 9.7 A, 14400 Btu/hr Cooling, 1 ph Phase
- Item ID: RX15RMVJUA
- Min. Order Qty: 1
- Item ID: RX15RMVJUA
- Brand: DAIKIN
-
-
DAIKIN Heat Pump Condenser, RX_RMVJU Series, 208/230 V, 9.7 A, 1.39 kW Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 18000 Btu/hr, Cooling BTU Rating: 14400 Btu/hr, Heating CFM Rating: 2108 cfm, Cooling CFM Rating: 2313 cfm, 12.5 EER, 20.7 SEER, 11 HSPF, Flared Connection, Inverter Hermetically Sealed Swing Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 15 A Fuse, Tonnage: 1.25 ton, Heating Sound Level: 51 dBA, Cooling Sound Level: 50 dBA, Ivory White, Heating Operating Temperature: 5 to 65 deg F, Cooling Operating Temperature: 50 to 115 deg F, 12-5/8 in Overall Length, 34-1/4 in Overall Width, 28-15/16 in Overall Height, Additional Information: 18 FPI, 7.125 sq-ft Face Area
- High-efficiency Inverter swing compressor
- Auto restart in case of power failure
- Coated coils for corrosion protection
- Automatic defrosting
| Additional Information | : | 18 FPI, 7.125 sq-ft Face Area |
| Amperage Rating | : | 9.7 A |
| Color | : | Ivory White |
| Compressor Type | : | Inverter Hermetically Sealed Swing |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 14400 Btu/hr |
| Cooling CFM Rating | : | 2313 cfm |
| Cooling Operating Temperature | : | 50 to 115 deg F |
| Cooling Sound Level | : | 50 dBA |
| EER Rating | : | 12.5 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 11 |
| Heating BTU Rating | : | 18000 Btu/hr |
| Heating CFM Rating | : | 2108 cfm |
| Heating Operating Temperature | : | 5 to 65 deg F |
| Heating Sound Level | : | 51 dBA |
| Liquid Line Size | : | 1/4 in |
| Overall Height | : | 28-15/16 in |
| Overall Length | : | 12-5/8 in |
| Overall Width | : | 34-1/4 in |
| Phase | : | 1 ph |
| Power Rating | : | 1.39 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 20.7 |
| Series | : | RX_RMVJU Series |
| Suction Line Size | : | 1/2 in |
| Tonnage | : | 1.25 ton |
| Voltage Rating | : | 208/230 V |
DAIKIN RX15RMVJUA
