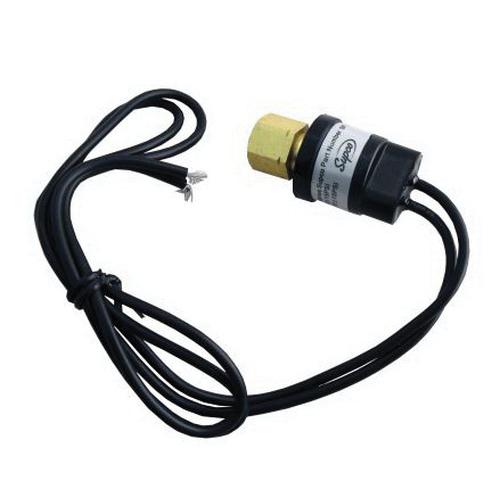

Supco® SFC170250 Fan Cycling Low Pressure Switch, 6 A Rated Load, 36 A Locked Rotor, 24/120/240 VAC, SPST
- Item ID: SFC170250
- Min. Order Qty: 1
- Item ID: SFC170250
- Brand: Supco®
-
-
Supco® Fan Cycling Low Pressure Switch, 6 A Rated Load, 36 A Locked Rotor, 24/120/240 VAC, 50/60 Hz, 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG 18 in Lead Wire Connection, Snap Switching Action, Contact Configuration: SPST, 170 lb/sq-in Open, 250 lb/sq-in Close, 0 to 650 lb/sq-in Working, 5000 lb/sq-in Burst, Direct Mounting, Stainless Steel, 20 to 176 deg F Ambient, 60 to 250 deg F Fluid
- Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
- Small size and lightweight for direct-mounting
- Excellent setpoint repeatability/stability
- Condenser fan cycling SPST close on pressure rise
- Can also be used as operating controls in applications such as a low ambient condenser fan control
- 15 lb/sq-in tolerance
- Close on pressure rise
| Amperage Rating | : | 6 A Rated Load, 36 A Locked Rotor |
| Connection Type | : | 1/4 in SAE Female Flared with Valve Core Depressor, 18 AWG 18 in Lead Wire |
| Contact Configuration | : | SPST |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Stainless Steel |
| Mounting Type | : | Direct |
| Pressure Rating | : | 170 lb/sq-in Open, 250 lb/sq-in Close, 0 to 650 lb/sq-in Working, 5000 lb/sq-in Burst |
| Switching Action | : | Snap |
| Temperature Rating | : | 20 to 176 deg F Ambient, 60 to 250 deg F Fluid |
| Voltage Rating | : | 24/120/240 VAC |
