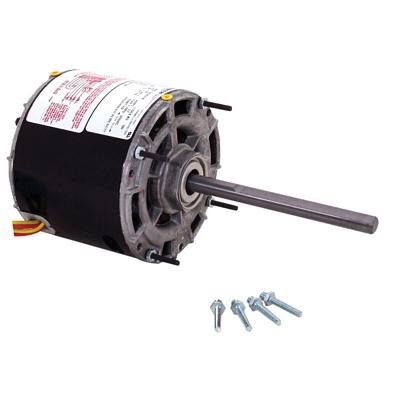

Century® 390 Fan/Blower Motor, 115 V, 3.7/3.1/2.4 A, 1/4 hp, 1/5 hp, 1/7 hp, 1050 rpm Speed, 0.19 kW, 1 ph -Phase, 60 Hz
- Item ID: 390
- Min. Order Qty: 1
- Item ID: 390
- Brand: Century®
-
-
Century® Fan/Blower Motor, 115 V, 3.7/3.1/2.4 A, 1/4 hp, 1/5 hp, 1/7 hp, 1050 rpm, 0.19 kW, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 42 Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, 3 Speed, Flat, Single Shaft Type, Sleeve Bearing, Band, Ring, Stud Mounting, Continuous, A Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 5 in Dia
- Auto protection
- Capacitor 7.5 uF at 370 VAC
- Extended thru bolts, shaft-end only
| Amperage Rating | : | 3.7/3.1/2.4 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5 in Dia |
| Duty Type | : | Continuous |
| Frame Size | : | 42 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp, 1/5 hp, 1/7 hp |
| Insulation Class | : | A |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open Air Over |
| Mounting Type | : | Band, Ring, Stud |
| Number of Poles | : | 6 |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Power Rating | : | 0.19 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 6 in L |
| Shaft Type | : | Flat, Single |
| Speed Rating | : | 1050 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 V |
No documents
Century® 390
