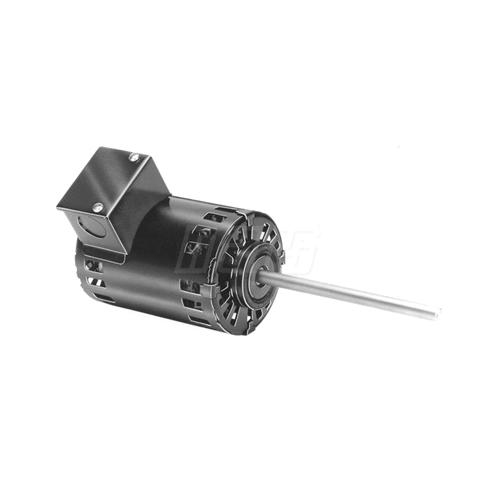

Fasco® D1144 Refrigeration Motor, 115 VAC, 1.1/0.9/0.6 A, 1/25 hp, 1200 rpm Speed, 0.03 kW, 1 ph -Phase, 60 Hz
- Item ID: D1144
- Min. Order Qty: 1
- Item ID: D1144
- Brand: Fasco®
-
-
Fasco® Refrigeration Motor, 115 VAC, 1.1/0.9/0.6 A, 1/25 hp, 1200 rpm, 0.03 kW, 1 ph Phase, 60 Hz, Open Ventilated Motor Enclosure, 3/8 in Dia x 5-3/8 in L Shaft, Clockwise Rotation, 3 Speed, Flat Shaft Type, Sleeve Bearing, Stud Mounting, Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, Steel, 40 deg C, 3.3 in Dia
- Replaces BA2H015
| Amperage Rating | : | 1.1/0.9/0.6 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 3.3 in Dia |
| Duty Type | : | Air Over |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/25 hp |
| Insulation Class | : | B |
| Material | : | Steel |
| Motor Enclosure Type | : | Open Ventilated |
| Mounting Type | : | Stud |
| Number of Poles | : | 6 |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Power Rating | : | 0.03 kW |
| Rotation Type | : | Clockwise |
| Service Factor | : | 1 |
| Shaft Size | : | 3/8 in Dia x 5-3/8 in L |
| Shaft Type | : | Flat |
| Speed Rating | : | 1200 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 VAC |
Fasco® D1144
