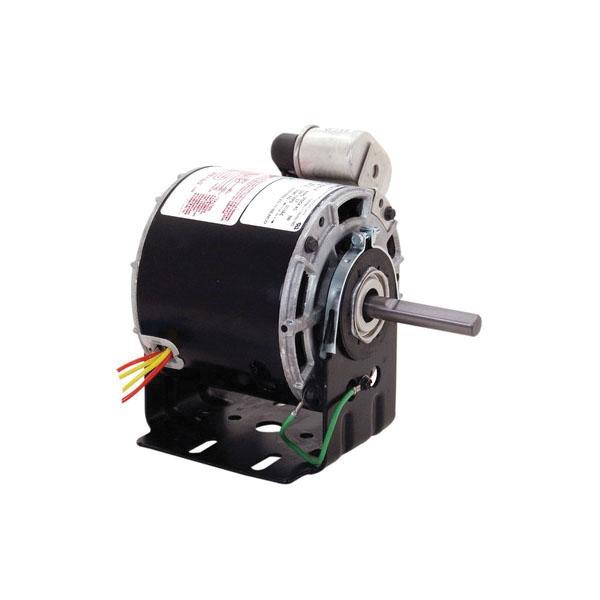

Century® 160A Replacement Motor, 208 to 230 V, 3 A, 1/3 hp, 1625 rpm Speed, 0.25 kW, 1 ph -Phase, 60 Hz, 48 Frame
- Item ID: 160A
- Min. Order Qty: 1
- Item ID: 160A
- Brand: Century®
-
-
Century® Replacement Motor, 208 to 230 V, 3 A, 1/3 hp, 1625 rpm, 0.25 kW, 1 ph Phase, 60 Hz, Open Motor Enclosure, 48 Frame, 1/2 in Dia x 3-1/2 in L Shaft, Reversible Rotation, 1 Speed, Double Flat Shaft Type, Sleeve Bearing, Resilient Base Mounting, Air Over, B Insulation Class, 4 Poles, 1 Service Factor, Across the Line Starting Method, Rolled Steel, 60 deg C, 5-5/8 in Dia
- Single shaft
- Automatic thermal overload protection
| Amperage Rating | : | 3 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-5/8 in Dia |
| Duty Type | : | Air Over |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open |
| Mounting Type | : | Resilient Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.25 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 3-1/2 in L |
| Shaft Type | : | Double Flat |
| Speed Rating | : | 1625 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 V |
No documents
Century® 160A
